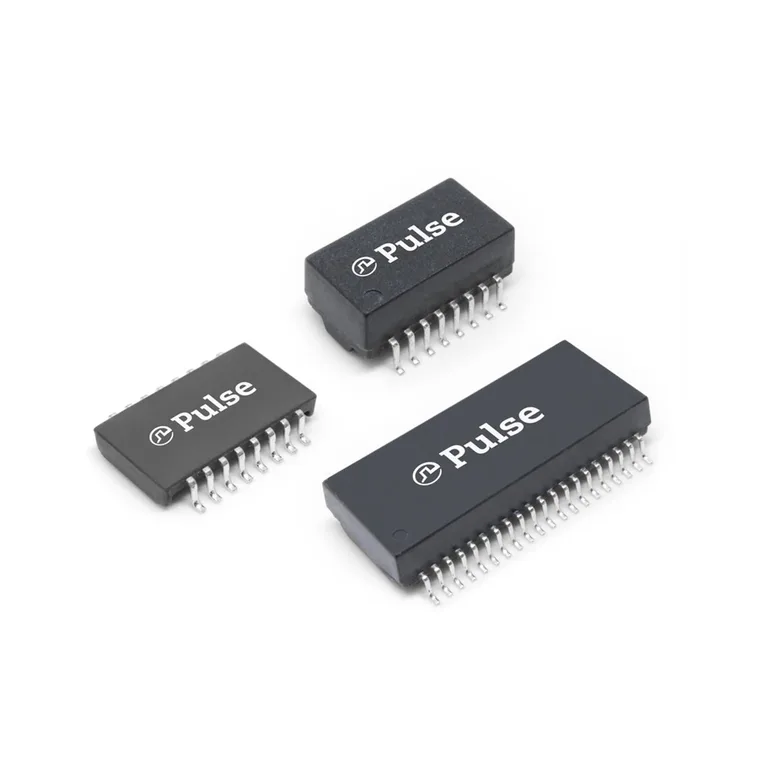

Image shown is representative only. Exact specifications should be obtained from the product datasheet.
Pulse Electronics NS0013 LF
Manufacturer
Manufacturer Product Number
NS0013 LF
Description
MDL SMD 10/100 SINGLE PORT N/A
Manufacturer Standard Lead Time Contact us
Detailed Description
MDL SMD 10/100 SINGLE PORT N/A
Datasheet View datasheet
Product Attributes
Type
Description
Manufacturer
Pulse Electronics
Operating Temperature
0°C ~ 70°C
Transformer Type
LAN 10/100 Base-T
Turns Ratio - Primary:Secondary
1:1CT Transmitter, 1:1CT Receiver
ET (Volt-Time)
-
Size / Dimension
0.500" L x 0.276" W (12.70mm x 7.00mm)
Mounting Type
Surface Mount
Height - Seated (Max)
0.079" (2.00mm)
Inductance
350µH
Weight
-
Documents & Media
Additional Resources
Attribute
Description
Part Number Alias
NS0013 LF
19561943
553-NS0013LFCT-ND
553-NS0013LFDKR-ND
553-NS0013LFTR-ND
Availability
In Stock
Updated
5/16/2026
In-Stock: 1,154
Packaging Quantity Unit Price Ext Price
1 75.000 ₫ 75.000 ₫
75.000 ₫
All prices are shown in the selected currency
Cut Tape (CT) · Digikey
Quantity Unit Price Ext Price
1
75.000 ₫
75.000 ₫
10
68.000 ₫
680.000 ₫
25
65.000 ₫
1.625.000 ₫
50
64.000 ₫
3.200.000 ₫
100
62.000 ₫
6.200.000 ₫
250
59.000 ₫
14.750.000 ₫
500
57.000 ₫
28.500.000 ₫
MOQ 1 · Order multiple 1
Digi-Reel® · Digikey
Quantity Unit Price Ext Price
1
75.000 ₫
75.000 ₫
10
68.000 ₫
680.000 ₫
25
65.000 ₫
1.625.000 ₫
50
64.000 ₫
3.200.000 ₫
100
62.000 ₫
6.200.000 ₫
250
59.000 ₫
14.750.000 ₫
500
57.000 ₫
28.500.000 ₫
MOQ 1 · Order multiple 1
Tape & Reel (TR) · Digikey
Quantity Unit Price Ext Price
1,500
55.000 ₫
82.500.000 ₫
3,000
53.000 ₫
159.000.000 ₫
4,500
52.000 ₫
234.000.000 ₫
MOQ 1,500 · Order multiple 1,500
