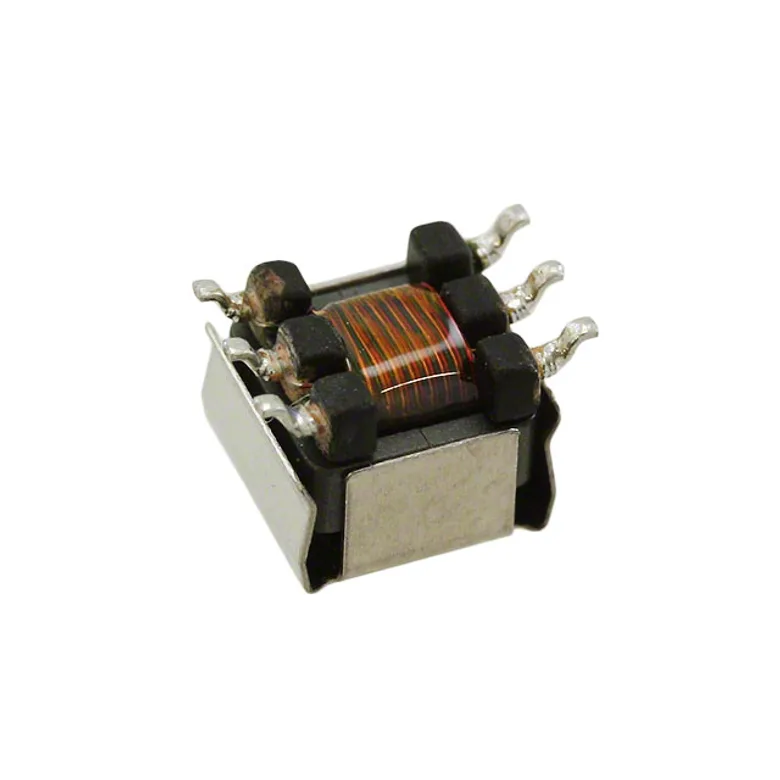

Image shown is representative only. Exact specifications should be obtained from the product datasheet.
Pulse Electronics P0926NL
Manufacturer
Manufacturer Product Number
P0926NL
Description
PULSE XFMR 1:1:1 300UH
Manufacturer Standard Lead Time Contact us
Detailed Description
PULSE XFMR 1:1:1 300UH
Datasheet View datasheet
EDA/CAD Models
Product Attributes
Type
Description
Manufacturer
Pulse Electronics
Operating Temperature
-40°C ~ 130°C
Transformer Type
-
Turns Ratio - Primary:Secondary
1:1:1
ET (Volt-Time)
23.8VµS
Size / Dimension
0.260" L x 0.315" W (6.60mm x 8.00mm)
Mounting Type
Surface Mount
Height - Seated (Max)
0.210" (5.33mm)
Inductance
300µH
Documents & Media
Resource Type
Link
CAD Models
EDA Models
Related Documents
Environmental Information
Product Change Notices
Additional Resources
Attribute
Description
Part Number Alias
P0926NL
2265652
553-2107-ND
Availability
In Stock
Updated
5/16/2026
In-Stock: 266
Packaging Quantity Unit Price Ext Price
1 86.000 ₫ 86.000 ₫
86.000 ₫
All prices are shown in the selected currency
Tray · Digikey
Quantity Unit Price Ext Price
1
86.000 ₫
86.000 ₫
10
78.000 ₫
780.000 ₫
25
74.000 ₫
1.850.000 ₫
50
72.000 ₫
3.600.000 ₫
120
69.000 ₫
8.280.000 ₫
360
66.000 ₫
23.760.000 ₫
600
65.000 ₫
39.000.000 ₫
1,080
63.000 ₫
68.040.000 ₫
MOQ 1 · Order multiple 1
