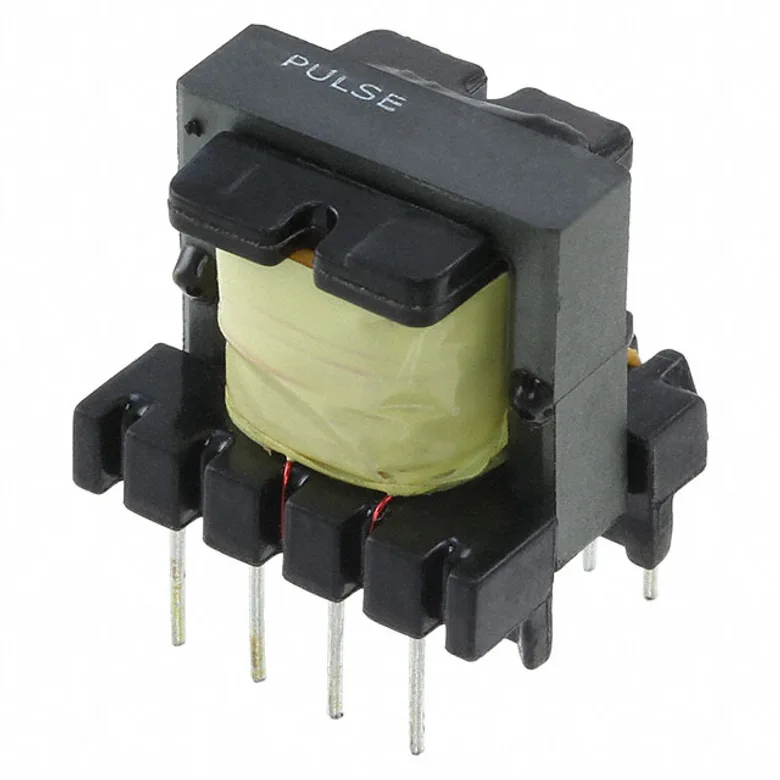

Image shown is representative only. Exact specifications should be obtained from the product datasheet.
Pulse Electronics P5009NL
Manufacturer
Manufacturer Product Number
P5009NL
Description
PULSE XFMR 1:0.1:0.1
Manufacturer Standard Lead Time Contact us
Detailed Description
Pulse Transformer 1:0.1:0.1 Through Hole
Datasheet View datasheet
EDA/CAD Models
Product Attributes
Type
Description
Manufacturer
Pulse Electronics
Operating Temperature
-30°C ~ 110°C
Transformer Type
-
Turns Ratio - Primary:Secondary
1:0.1:0.1
ET (Volt-Time)
-
Size / Dimension
0.717" L x 0.630" W (18.20mm x 16.00mm)
Mounting Type
Through Hole
Height - Seated (Max)
0.697" (17.70mm)
Inductance
-
Documents & Media
Resource Type
Link
Datasheets
EDA Models
Environmental Information
Product Change Notices
Additional Resources
Attribute
Description
Part Number Alias
P5009NL
5436433
553-2883-ND
Availability
In Stock
Updated
5/16/2026
In-Stock: 982
Packaging Quantity Unit Price Ext Price
1 84.000 ₫ 84.000 ₫
84.000 ₫
All prices are shown in the selected currency
Tray · Digikey
Quantity Unit Price Ext Price
1
84.000 ₫
84.000 ₫
10
76.000 ₫
760.000 ₫
40
71.000 ₫
2.840.000 ₫
80
69.000 ₫
5.520.000 ₫
120
68.000 ₫
8.160.000 ₫
280
65.000 ₫
18.200.000 ₫
520
63.000 ₫
32.760.000 ₫
1,000
62.000 ₫
62.000.000 ₫
MOQ 1 · Order multiple 1
