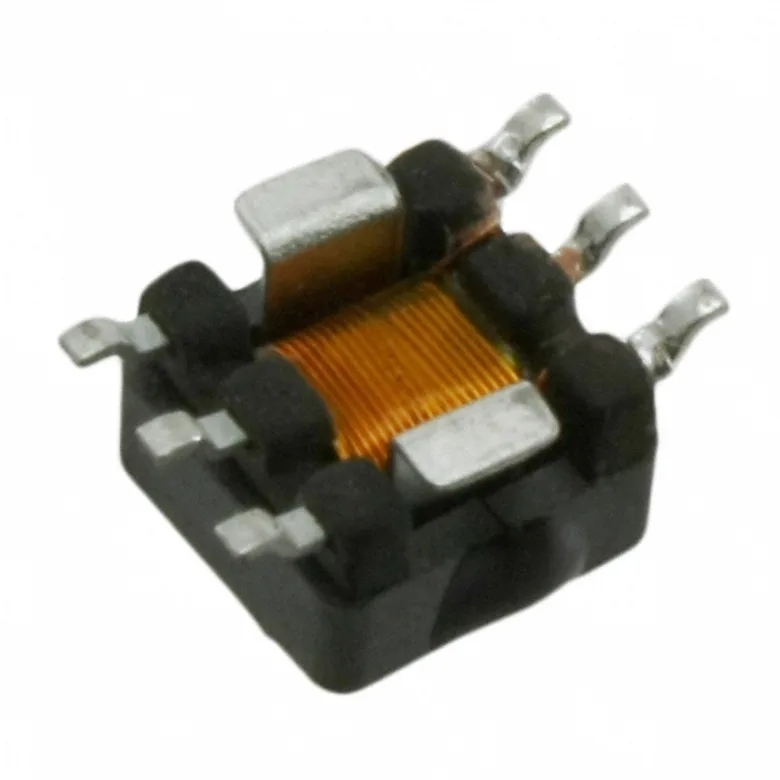

Image shown is representative only. Exact specifications should be obtained from the product datasheet.
Pulse Electronics P8205
Manufacturer
Manufacturer Product Number
P8205
Description
CURR SENSE XFMR 1:50 SMD
Manufacturer Standard Lead Time Contact us
Detailed Description
1:50 Current Sense Transformer 50kHz ~ 1MHz 6mOhm Surface Mount
Datasheet View datasheet
Product Attributes
Type
Description
Manufacturer
Pulse Electronics
Product Status
Obsolete
DC Resistance (DCR)
6mOhm
Turns Ratio - Primary:Secondary
1:50
ET (Volt-Time)
-
Frequency Range
50kHz ~ 1MHz
Size / Dimension
0.284" L x 0.330" W (7.21mm x 8.38mm)
Mounting Type
Surface Mount
Ratings
-
Height - Seated (Max)
0.217" (5.50mm)
Type
Invasive
Current Ratio
-
Documents & Media
Resource Type
Link
Datasheets
Product Change Notices
Featured Products
Environmental & Export Classifications
Attribute
Description
Product Status
Obsolete
Additional Resources
Attribute
Description
Part Number Alias
P8205
3533343
Availability
Out of Stock
Updated
5/16/2026
In-Stock: 0
Packaging Quantity Unit Price Ext Price
1 0Â â‚« 0Â â‚«
0Â â‚«
All prices are shown in the selected currency
