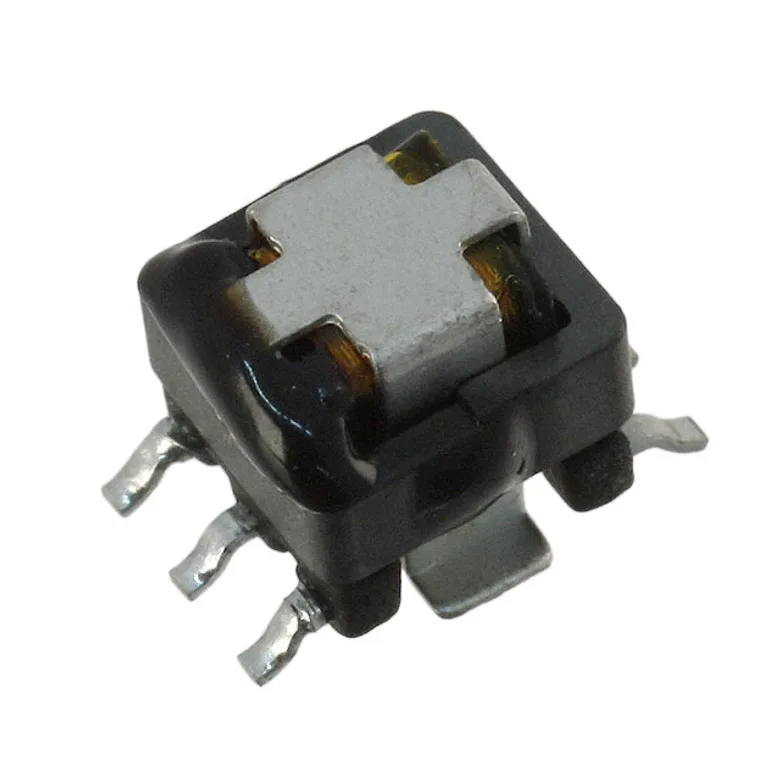

Image shown is representative only. Exact specifications should be obtained from the product datasheet.
Pulse Electronics PA1005.100NLT
Manufacturer
Manufacturer Product Number
PA1005.100NLT
Description
CURR SENSE XFMR 1:100 20A SMD
Manufacturer Standard Lead Time Contact us
Detailed Description
20 A 1:100 Current Sense Transformer 50kHz ~ 1MHz 0.75mOhm Primary, 5.5Ohm Secondary 2 mH Surface Mount
Datasheet View datasheet
EDA/CAD Models
Product Attributes
Type
Description
Manufacturer
Pulse Electronics
Termination Style
Gull Wing
DC Resistance (DCR)
0.75mOhm Primary, 5.5Ohm Secondary
Turns Ratio - Primary:Secondary
1:100
ET (Volt-Time)
-
Frequency Range
50kHz ~ 1MHz
Size / Dimension
0.284" L x 0.330" W (7.21mm x 8.38mm)
Mounting Type
Surface Mount
Ratings
-
Height - Seated (Max)
0.217" (5.50mm)
Type
Invasive
Current Ratio
-
Inductance
2 mH
Current Rating (Amps)
20 A
Weight
0.014 oz (0.4 g)
Documents & Media
Resource Type
Link
CAD Models
EDA Models
Related Documents
Environmental Information
Product Change Notices
Featured Products
Additional Resources
Attribute
Description
Part Number Alias
PA1005.100NLT
2362935
553-1529-1-ND
553-1529-2-ND
553-1529-6-ND
Availability
In Stock
Updated
5/16/2026
In-Stock: 13,084
Packaging Quantity Unit Price Ext Price
1 53.000Â â‚« 53.000Â â‚«
53.000Â â‚«
All prices are shown in the selected currency
Cut Tape (CT) · Digikey
Quantity Unit Price Ext Price
1
53.000Â â‚«
53.000Â â‚«
10
48.000Â â‚«
480.000Â â‚«
25
46.000Â â‚«
1.150.000Â â‚«
50
45.000Â â‚«
2.250.000Â â‚«
100
43.000Â â‚«
4.300.000Â â‚«
250
42.000Â â‚«
10.500.000Â â‚«
MOQ 1 · Order multiple 1
Tape & Reel (TR) · Digikey
Quantity Unit Price Ext Price
900
39.000Â â‚«
35.100.000Â â‚«
1,800
38.000Â â‚«
68.400.000Â â‚«
2,700
37.000Â â‚«
99.900.000Â â‚«
4,500
37.000Â â‚«
166.500.000Â â‚«
6,300
36.000Â â‚«
226.800.000Â â‚«
MOQ 900 · Order multiple 900
Digi-Reel® · Digikey
Quantity Unit Price Ext Price
1
53.000Â â‚«
53.000Â â‚«
10
48.000Â â‚«
480.000Â â‚«
25
46.000Â â‚«
1.150.000Â â‚«
50
45.000Â â‚«
2.250.000Â â‚«
100
43.000Â â‚«
4.300.000Â â‚«
250
42.000Â â‚«
10.500.000Â â‚«
MOQ 1 · Order multiple 1
