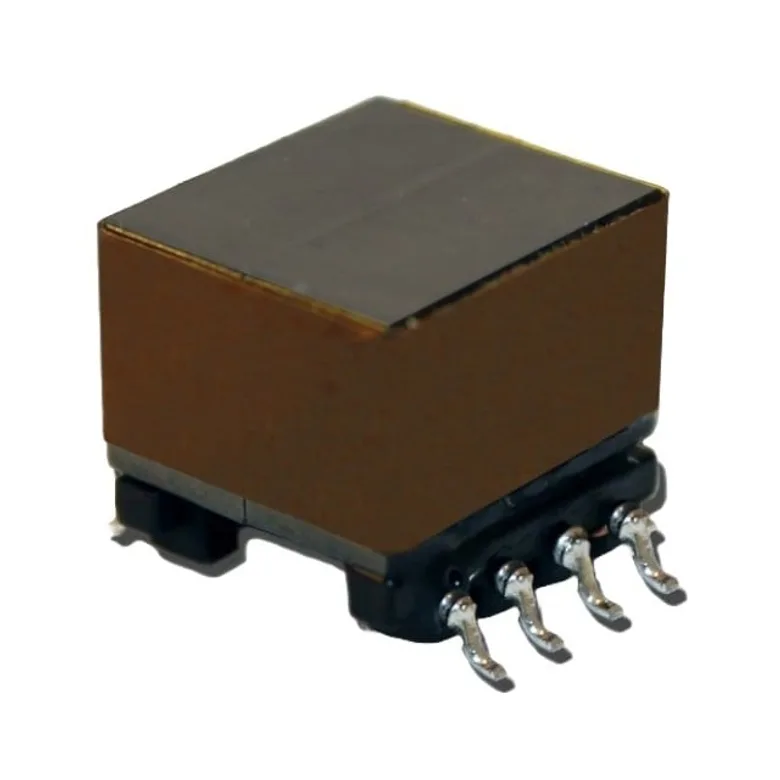

Image shown is representative only. Exact specifications should be obtained from the product datasheet.
Pulse Electronics PA1280NLT
Manufacturer
Manufacturer Product Number
PA1280NLT
Description
XFRMR 5V 3W 310UH POE EP7 SMD
Manufacturer Standard Lead Time Contact us
Detailed Description
310µH Isolation and Data Interface (Encapsulated) Pulse Transformer 1:0.273:0.682 Surface Mount
Datasheet View datasheet
EDA/CAD Models
Product Attributes
Type
Description
Manufacturer
Pulse Electronics
Operating Temperature
-40°C ~ 125°C
Transformer Type
Isolation and Data Interface (Encapsulated)
Turns Ratio - Primary:Secondary
1:0.273:0.682
ET (Volt-Time)
-
Size / Dimension
0.420" L x 0.525" W (10.67mm x 13.34mm)
Mounting Type
Surface Mount
Height - Seated (Max)
0.365" (9.27mm)
Inductance
310µH
Weight
-
Documents & Media
Resource Type
Link
Datasheets
CAD Models
Related Documents
Environmental Information
Product Change Notices
Additional Resources
Attribute
Description
Part Number Alias
PA1280NLT
2265940
PA1280NLT-ND
Availability
Out of Stock
Updated
5/16/2026
In-Stock: 0
Packaging Quantity Unit Price Ext Price
1 57.000 ₫ 57.000 ₫
57.000 ₫
All prices are shown in the selected currency
Tape & Reel (TR) · Digikey
Quantity Unit Price Ext Price
900
57.000 ₫
51.300.000 ₫
MOQ 900 · Order multiple 900
