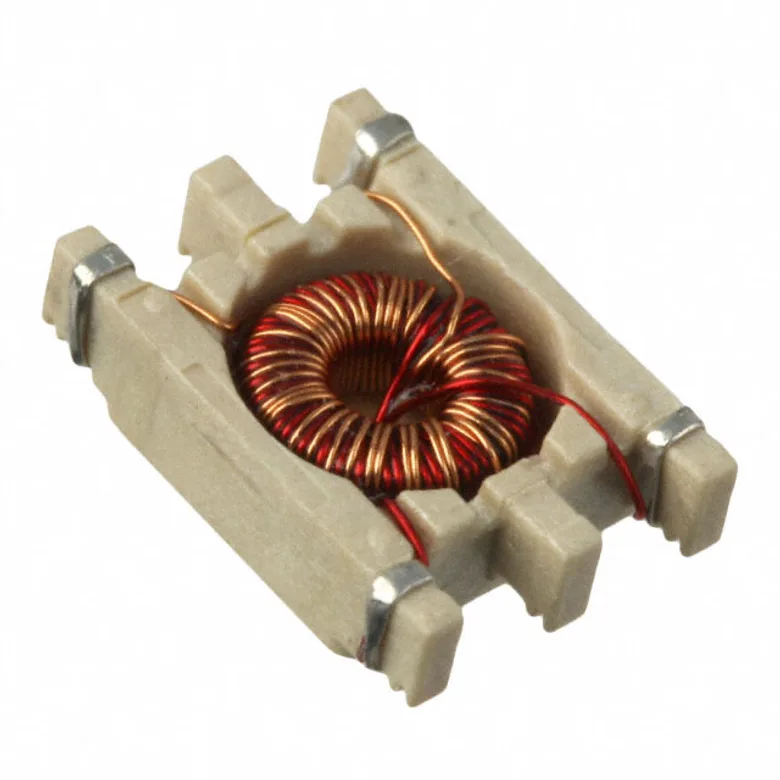

Image shown is representative only. Exact specifications should be obtained from the product datasheet.
Pulse Electronics PA2001NL
Manufacturer
Manufacturer Product Number
PA2001NL
Description
PULSE XFMR 1:1 403UH
Manufacturer Standard Lead Time Contact us
Detailed Description
PULSE XFMR 1:1 403UH
Datasheet View datasheet
Product Attributes
Type
Description
Manufacturer
Pulse Electronics
Operating Temperature
-40°C ~ 130°C
Transformer Type
-
Turns Ratio - Primary:Secondary
1:1
ET (Volt-Time)
12VµS
Size / Dimension
0.340" L x 0.265" W (8.64mm x 6.73mm)
Mounting Type
Surface Mount
Height - Seated (Max)
0.098" (2.49mm)
Inductance
403µH
Documents & Media
Resource Type
Link
Environmental Information
Additional Resources
Attribute
Description
Part Number Alias
PA2001NL
5436691
553-2921-5-ND
Availability
In Stock
Updated
5/16/2026
In-Stock: 1,797
Packaging Quantity Unit Price Ext Price
1 48.000 ₫ 48.000 ₫
48.000 ₫
All prices are shown in the selected currency
Tube · Digikey
Quantity Unit Price Ext Price
1
48.000 ₫
48.000 ₫
10
43.000 ₫
430.000 ₫
25
41.000 ₫
1.025.000 ₫
85
39.000 ₫
3.315.000 ₫
170
38.000 ₫
6.460.000 ₫
255
37.000 ₫
9.435.000 ₫
510
36.000 ₫
18.360.000 ₫
1,020
35.000 ₫
35.700.000 ₫
5,015
33.000 ₫
165.495.000 ₫
MOQ 1 · Order multiple 1
