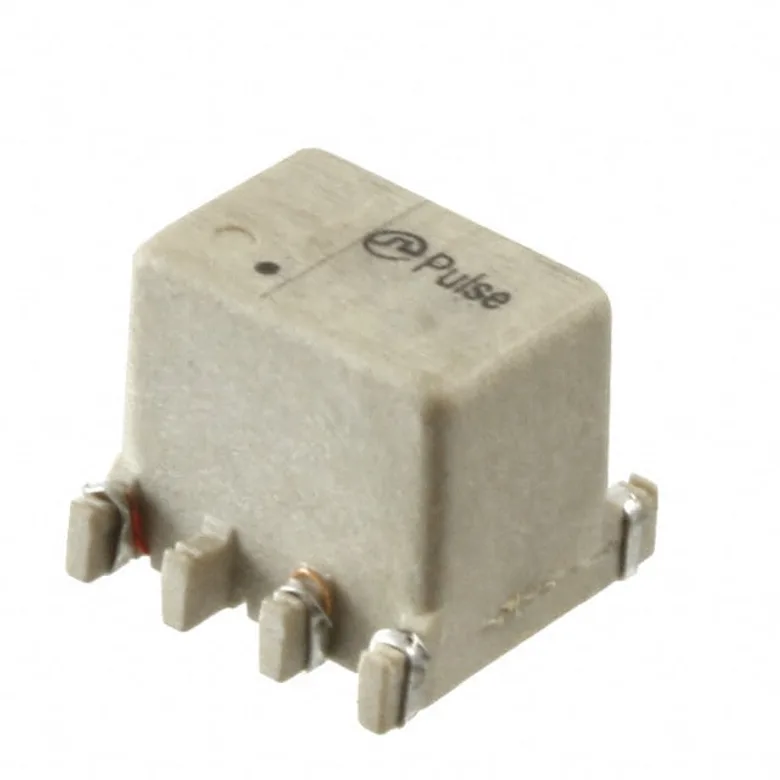

Image shown is representative only. Exact specifications should be obtained from the product datasheet.
Pulse Electronics PA2002NLT
Manufacturer
Manufacturer Product Number
PA2002NLT
Description
PULSE XFMR 1:1:1 1.8MH
Manufacturer Standard Lead Time Contact us
Detailed Description
PULSE XFMR 1:1:1 1.8MH
Datasheet View datasheet
EDA/CAD Models
Product Attributes
Type
Description
Manufacturer
Pulse Electronics
Operating Temperature
-40°C ~ 130°C
Transformer Type
-
Turns Ratio - Primary:Secondary
1:1:1
ET (Volt-Time)
60VµS
Size / Dimension
0.355" L x 0.340" W (9.02mm x 8.64mm)
Mounting Type
Surface Mount
Height - Seated (Max)
0.300" (7.62mm)
Inductance
1.8mH
Documents & Media
Resource Type
Link
CAD Models
Related Documents
Environmental Information
Additional Resources
Attribute
Description
Part Number Alias
PA2002NLT
3179353
553-1994-1-ND
Availability
In Stock
Updated
5/16/2026
In-Stock: 174
Packaging Quantity Unit Price Ext Price
1 63.000 ₫ 63.000 ₫
63.000 ₫
All prices are shown in the selected currency
Cut Tape (CT) · Digikey
Quantity Unit Price Ext Price
1
63.000 ₫
63.000 ₫
10
57.000 ₫
570.000 ₫
25
55.000 ₫
1.375.000 ₫
50
53.000 ₫
2.650.000 ₫
100
52.000 ₫
5.200.000 ₫
MOQ 1 · Order multiple 1
