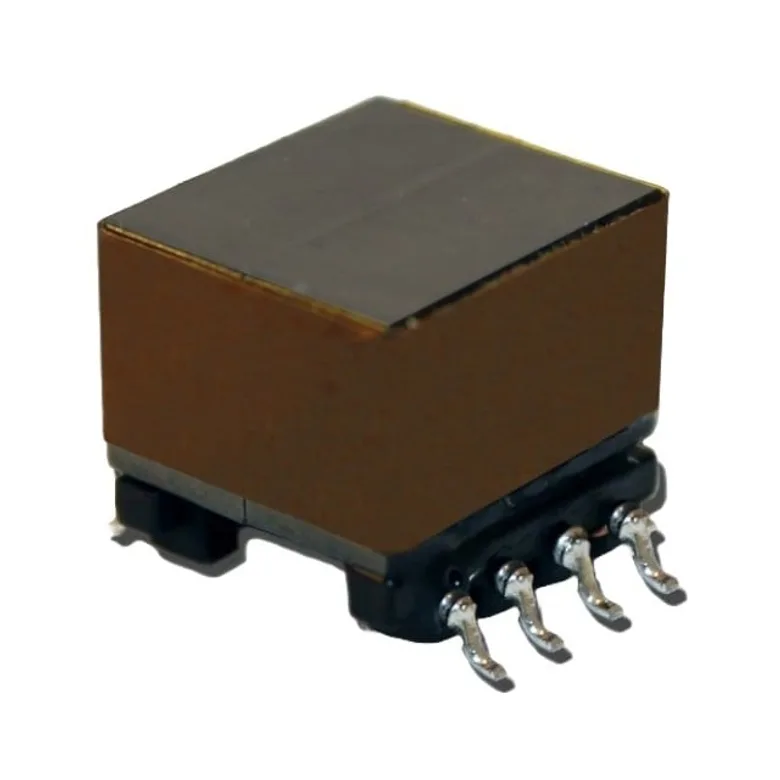

Image shown is representative only. Exact specifications should be obtained from the product datasheet.
Pulse Electronics PA2363NL
Manufacturer
Manufacturer Product Number
PA2363NL
Description
PULSE XFMR 5:1 25.2UH
Manufacturer Standard Lead Time Contact us
Detailed Description
25.2µH Pulse Transformer Surface Mount
Datasheet View datasheet
Product Attributes
Type
Description
Manufacturer
Pulse Electronics
Operating Temperature
-40°C ~ 130°C
Transformer Type
-
Turns Ratio - Primary:Secondary
-
ET (Volt-Time)
-
Size / Dimension
0.515" L x 0.600" W (13.08mm x 15.24mm)
Mounting Type
Surface Mount
Height - Seated (Max)
0.451" (11.45mm)
Inductance
25.2µH
Weight
-
Documents & Media
Resource Type
Link
Datasheets
Environmental Information
Additional Resources
Attribute
Description
Part Number Alias
PA2363NL
5174391
PA2363NL-ND
Availability
Out of Stock
Updated
5/16/2026
In-Stock: 0
Packaging Quantity Unit Price Ext Price
1 63.000 ₫ 63.000 ₫
63.000 ₫
All prices are shown in the selected currency
Tray · Digikey
Quantity Unit Price Ext Price
825
63.000 ₫
51.975.000 ₫
MOQ 825 · Order multiple 825
Alternate Packaging
PA2363NLT
PULSE XFMR 5:1 25.2UH
63.000 ₫ Pulse Electronics
