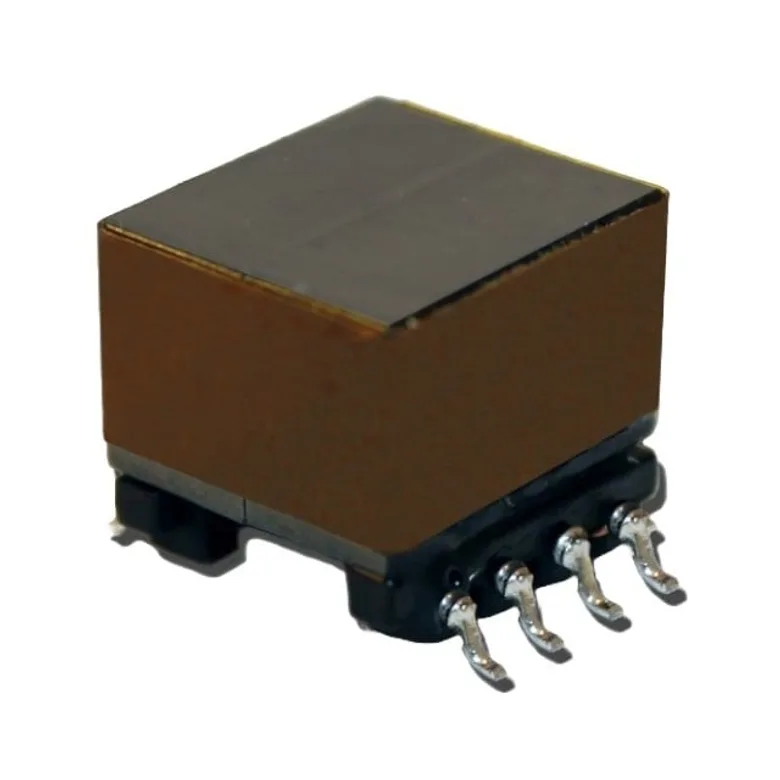

Image shown is representative only. Exact specifications should be obtained from the product datasheet.
Pulse Electronics PA2364NLT
Manufacturer
Manufacturer Product Number
PA2364NLT
Description
PULSE XFMR 7:1 25.2UH
Manufacturer Standard Lead Time Contact us
Detailed Description
25.2µH Pulse Transformer Surface Mount
Datasheet View datasheet
EDA/CAD Models
Product Attributes
Type
Description
Manufacturer
Pulse Electronics
Operating Temperature
-40°C ~ 130°C
Transformer Type
-
Turns Ratio - Primary:Secondary
-
ET (Volt-Time)
-
Size / Dimension
0.515" L x 0.600" W (13.08mm x 15.24mm)
Mounting Type
Surface Mount
Height - Seated (Max)
0.451" (11.45mm)
Inductance
25.2µH
Weight
-
Documents & Media
Resource Type
Link
Datasheets
CAD Models
Related Documents
Environmental Information
Additional Resources
Attribute
Description
Part Number Alias
PA2364NLT
5174394
PA2364NLT-ND
Availability
Out of Stock
Updated
5/16/2026
In-Stock: 0
Packaging Quantity Unit Price Ext Price
1 55.000 ₫ 55.000 ₫
55.000 ₫
All prices are shown in the selected currency
Tape & Reel (TR) · Digikey
Quantity Unit Price Ext Price
1,200
55.000 ₫
66.000.000 ₫
MOQ 1,200 · Order multiple 1,200
Alternate Packaging
PA2364NL
PULSE XFMR 7:1 25.2UH
53.000 ₫ Pulse Electronics
