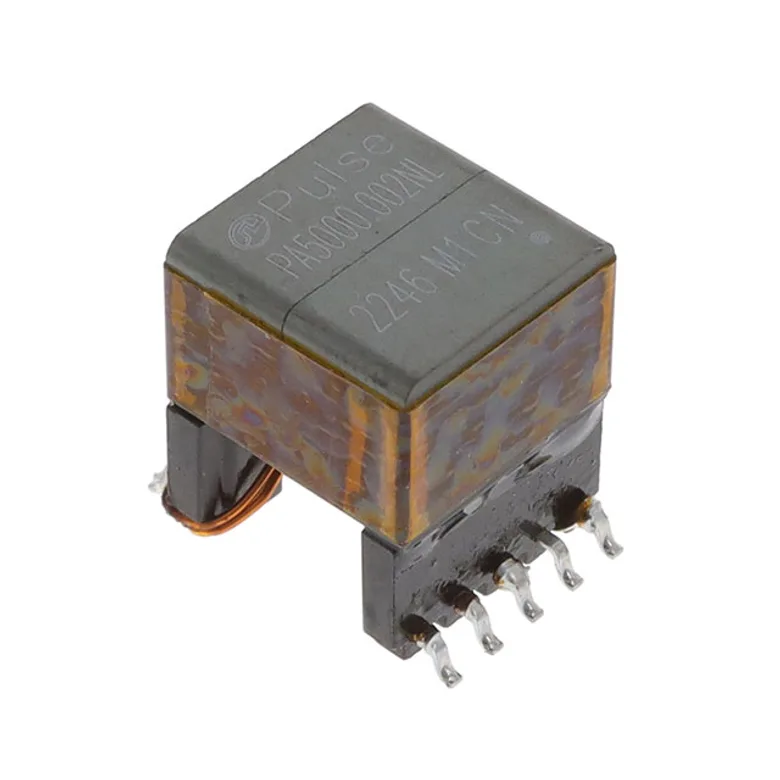

Image shown is representative only. Exact specifications should be obtained from the product datasheet.
Pulse Electronics PA5000.002NL
Manufacturer
Manufacturer Product Number
PA5000.002NL
Description
XFMR FWD P-P DC/DC CONV 100UH SM
Manufacturer Standard Lead Time Contact us
Detailed Description
XFMR FWD P-P DC/DC CONV 100UH SM
Datasheet View datasheet
Product Attributes
Type
Description
Manufacturer
Pulse Electronics
Operating Temperature
-40°C ~ 130°C
Applications
Forward, Push-Pull Converters
Size / Dimension
0.531" L x 0.520" W (13.50mm x 13.20mm)
Voltage - Isolation
3000Vrms
Mounting Type
Surface Mount
Style
Wirewound
Frequency
200kHz
Intended Chipset
-
Voltage - Primary
33 ~ 75V
Voltage - Auxiliary
10V @ 50mA
Footprint
0.697" L x 0.531" W (17.70mm x 13.50mm)
Chipset Manufacturer
-
Height - Seated (Max)
0.650" (16.50mm)
Type
For DC/DC Converters
Inductance @ Frequency
100µH
Documents & Media
Resource Type
Link
Datasheets
Environmental Information
Product Change Notices
Additional Resources
Attribute
Description
Part Number Alias
PA5000.002NL
10280819
553-PA5000.002NL-ND
Availability
In Stock
Updated
5/16/2026
In-Stock: 429
Packaging Quantity Unit Price Ext Price
1 113.000 ₫ 113.000 ₫
113.000 ₫
All prices are shown in the selected currency
Tray · Digikey
Quantity Unit Price Ext Price
1
113.000 ₫
113.000 ₫
10
103.000 ₫
1.030.000 ₫
25
99.000 ₫
2.475.000 ₫
50
96.000 ₫
4.800.000 ₫
100
93.000 ₫
9.300.000 ₫
250
89.000 ₫
22.250.000 ₫
500
86.000 ₫
43.000.000 ₫
1,000
83.000 ₫
83.000.000 ₫
MOQ 1 · Order multiple 1
