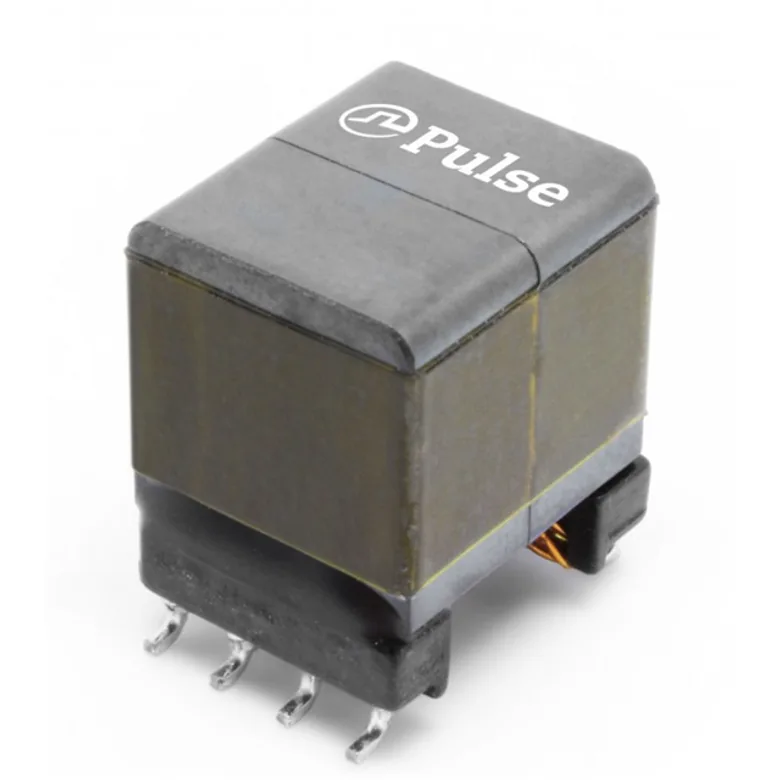

Image shown is representative only. Exact specifications should be obtained from the product datasheet.
Pulse Electronics PA5099.005NLT
Manufacturer
Manufacturer Product Number
PA5099.005NLT
Description
XFMR FLYBACK DC/DC CONV SMD
Manufacturer Standard Lead Time Contact us
Detailed Description
Flyback Converters For For DC/DC Converters SMPS Transformer 2250VDC Isolation 200kHz Surface Mount
Datasheet View datasheet
EDA/CAD Models
Product Attributes
Type
Description
Manufacturer
Pulse Electronics
Operating Temperature
-40°C ~ 125°C
Applications
Flyback Converters
Size / Dimension
0.535" L x 0.433" W (13.60mm x 11.00mm)
Voltage - Isolation
2250VDC
Mounting Type
Surface Mount
Style
Wirewound
Frequency
200kHz
Intended Chipset
-
Voltage - Primary
9 ~ 57V
Voltage - Auxiliary
-
Footprint
0.535" L x 0.433" W (13.60mm x 11.00mm)
Chipset Manufacturer
-
Height - Seated (Max)
0.610" (15.50mm)
Type
For DC/DC Converters
Inductance @ Frequency
-
Documents & Media
Resource Type
Link
Datasheets
CAD Models
Related Documents
Environmental Information
Product Change Notices
Featured Products
Additional Resources
Attribute
Description
Part Number Alias
PA5099.005NLT
10280802
553-PA5099.005NLTCT-ND
553-PA5099.005NLTTR-ND
Availability
In Stock
Updated
5/16/2026
In-Stock: 206
Packaging Quantity Unit Price Ext Price
1 94.000 ₫ 94.000 ₫
94.000 ₫
All prices are shown in the selected currency
Cut Tape (CT) · Digikey
Quantity Unit Price Ext Price
1
94.000 ₫
94.000 ₫
10
85.000 ₫
850.000 ₫
25
82.000 ₫
2.050.000 ₫
50
79.000 ₫
3.950.000 ₫
MOQ 1 · Order multiple 1
Tape & Reel (TR) · Digikey
Quantity Unit Price Ext Price
125
76.000 ₫
9.500.000 ₫
250
74.000 ₫
18.500.000 ₫
375
72.000 ₫
27.000.000 ₫
625
71.000 ₫
44.375.000 ₫
875
70.000 ₫
61.250.000 ₫
1,250
68.000 ₫
85.000.000 ₫
MOQ 125 · Order multiple 125
