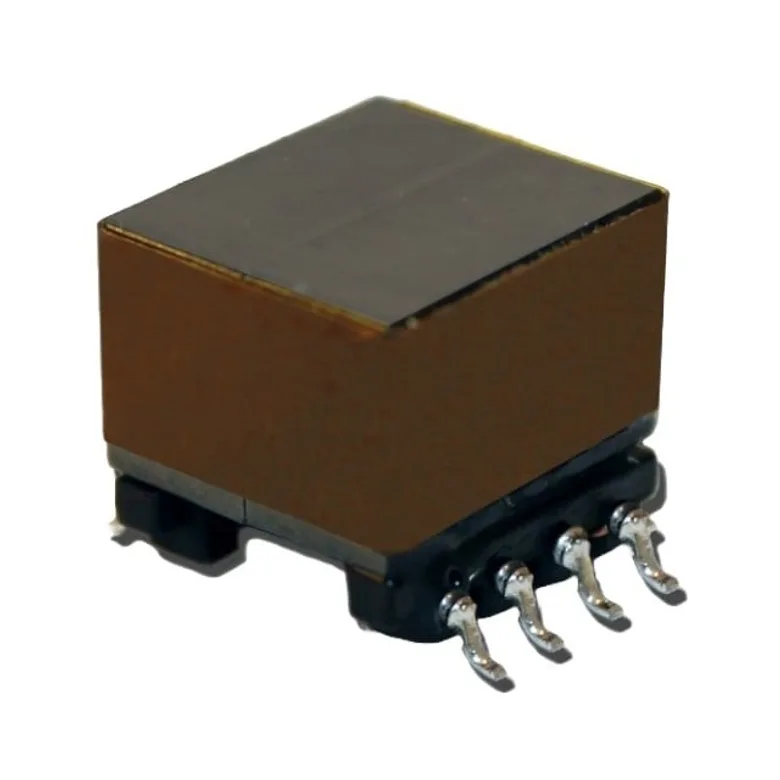

Image shown is representative only. Exact specifications should be obtained from the product datasheet.
Pulse Electronics PA5178NL
Manufacturer
Manufacturer Product Number
PA5178NL
Description
XFMR DC/DC CONV 4UH SMD
Manufacturer Standard Lead Time Contact us
Detailed Description
For For DC/DC Converters SMPS Transformer 1500Vrms Isolation 140kHz Surface Mount
Datasheet View datasheet
EDA/CAD Models
Product Attributes
Type
Description
Manufacturer
Pulse Electronics
Operating Temperature
-40°C ~ 130°C
Applications
-
Size / Dimension
-
Voltage - Isolation
1500Vrms
Mounting Type
Surface Mount
Style
Wirewound
Frequency
140kHz
Intended Chipset
-
Voltage - Primary
2 ~ 8V
Voltage - Auxiliary
-
Footprint
0.600" L x 0.516" W (15.24mm x 13.10mm)
Chipset Manufacturer
-
Height - Seated (Max)
0.451" (11.45mm)
Type
For DC/DC Converters
Inductance @ Frequency
4µH
Documents & Media
Resource Type
Link
Datasheets
CAD Models
Related Documents
Environmental Information
Additional Resources
Attribute
Description
Part Number Alias
PA5178NL
10280806
553-PA5178NL-ND
Availability
In Stock
Updated
5/16/2026
In-Stock: 26
Packaging Quantity Unit Price Ext Price
1 86.000 ₫ 86.000 ₫
86.000 ₫
All prices are shown in the selected currency
Tray · Digikey
Quantity Unit Price Ext Price
1
86.000 ₫
86.000 ₫
10
78.000 ₫
780.000 ₫
25
75.000 ₫
1.875.000 ₫
50
72.000 ₫
3.600.000 ₫
100
70.000 ₫
7.000.000 ₫
250
67.000 ₫
16.750.000 ₫
500
65.000 ₫
32.500.000 ₫
1,000
63.000 ₫
63.000.000 ₫
MOQ 1 · Order multiple 1
