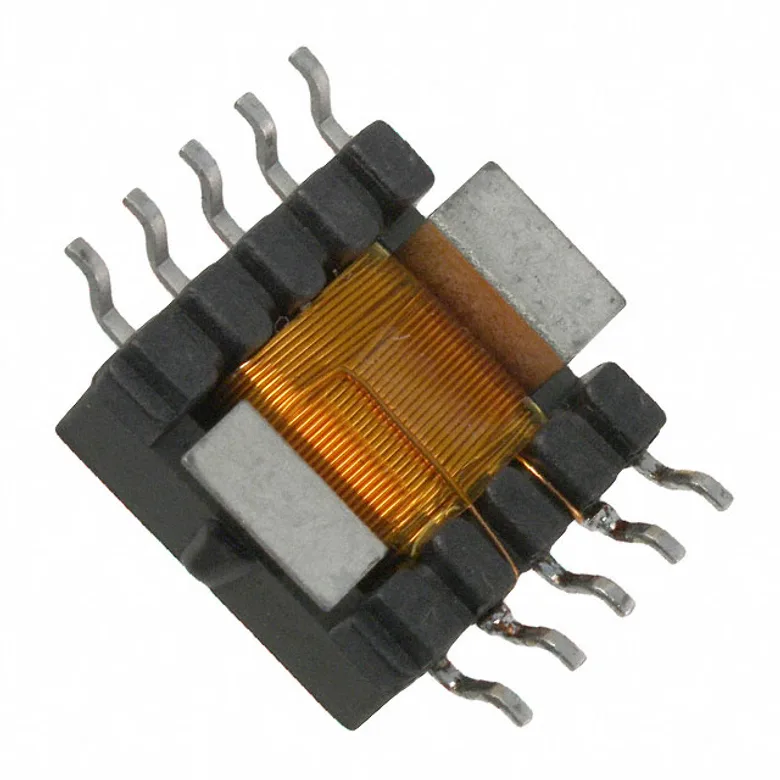

Image shown is representative only. Exact specifications should be obtained from the product datasheet.
Pulse Electronics PB0027
Manufacturer
Manufacturer Product Number
PB0027
Description
CURR SENSE XFMR 200:1 35A SMD
Manufacturer Standard Lead Time Contact us
Detailed Description
35 A 200:1 Current Sense Transformer 50kHz ~ 500kHz 2.8mOhm Primary, 2.9Ohm Secondary 22.4 mH Surface Mount
Datasheet View datasheet
Product Attributes
Type
Description
Manufacturer
Pulse Electronics
Product Status
Obsolete
Termination Style
Gull Wing
DC Resistance (DCR)
2.8mOhm Primary, 2.9Ohm Secondary
Turns Ratio - Primary:Secondary
200:1
ET (Volt-Time)
-
Frequency Range
50kHz ~ 500kHz
Size / Dimension
0.784" L x 0.570" W (19.91mm x 14.48mm)
Mounting Type
Surface Mount
Ratings
-
Height - Seated (Max)
0.394" (10.00mm)
Type
Invasive
Current Ratio
-
Inductance
22.4 mH
Current Rating (Amps)
35 A
Weight
0.010 lb (4.70 g)
Documents & Media
Resource Type
Link
Datasheets
Product Change Notices
Environmental & Export Classifications
Attribute
Description
Product Status
Obsolete
Additional Resources
Attribute
Description
Part Number Alias
PB0027
3533345
Availability
Out of Stock
Updated
5/16/2026
In-Stock: 0
Packaging Quantity Unit Price Ext Price
1 0Â â‚« 0Â â‚«
0Â â‚«
All prices are shown in the selected currency
Substitutes
PB0027NL
CURR SENSE XFMR 200:1 35A SMD
83.000Â â‚« Pulse Electronics
