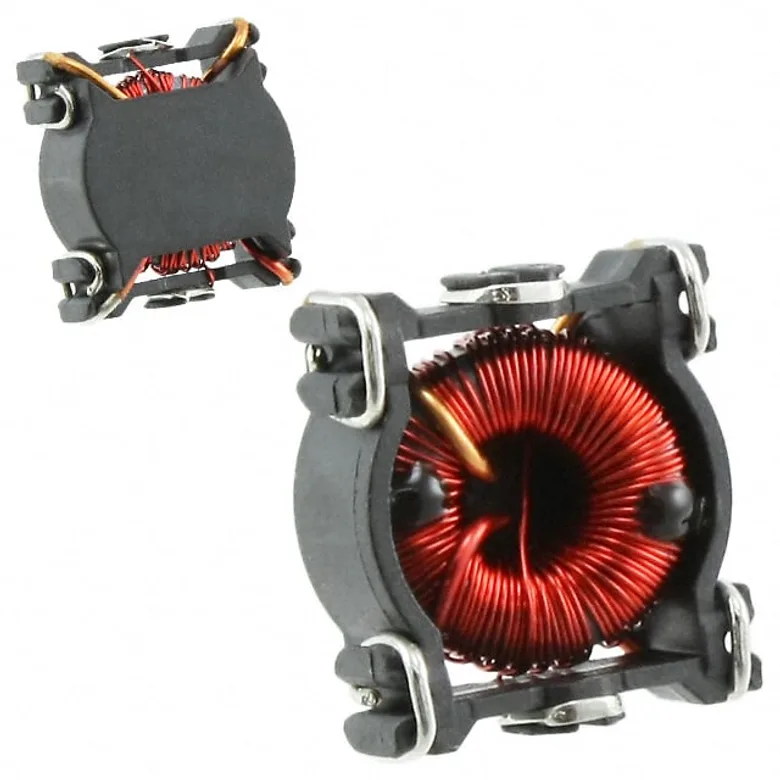

Image shown is representative only. Exact specifications should be obtained from the product datasheet.
Pulse Electronics PE-68280NL
Manufacturer
Manufacturer Product Number
PE-68280NL
Description
CURR SENSE XFMR 1:1:100 SMD
Manufacturer Standard Lead Time Contact us
Detailed Description
CURR SENSE XFMR 1:1:100 SMD
Datasheet View datasheet
Product Attributes
Type
Description
Manufacturer
Pulse Electronics
Termination Style
-
DC Resistance (DCR)
1.15mOhm Primary, 930mOhm Secondary
Turns Ratio - Primary:Secondary
1:1:100
ET (Volt-Time)
-
Frequency Range
50kHz ~ 500kHz
Size / Dimension
0.495" L x 0.490" W (12.57mm x 12.45mm)
Mounting Type
Surface Mount
Ratings
-
Height - Seated (Max)
0.280" (7.11mm)
Type
Invasive
Current Ratio
-
Inductance
14.8 mH
Weight
-
Documents & Media
Additional Resources
Attribute
Description
Part Number Alias
PE-68280NL
2265954
553-1585-5-ND
Availability
In Stock
Updated
5/16/2026
In-Stock: 147
Packaging Quantity Unit Price Ext Price
1 88.000Â â‚« 88.000Â â‚«
88.000Â â‚«
All prices are shown in the selected currency
Tube · Digikey
Quantity Unit Price Ext Price
1
88.000Â â‚«
88.000Â â‚«
10
80.000Â â‚«
800.000Â â‚«
40
75.000Â â‚«
3.000.000Â â‚«
80
73.000Â â‚«
5.840.000Â â‚«
120
71.000Â â‚«
8.520.000Â â‚«
280
69.000Â â‚«
19.320.000Â â‚«
520
67.000Â â‚«
34.840.000Â â‚«
1,000
65.000Â â‚«
65.000.000Â â‚«
MOQ 1 · Order multiple 1
