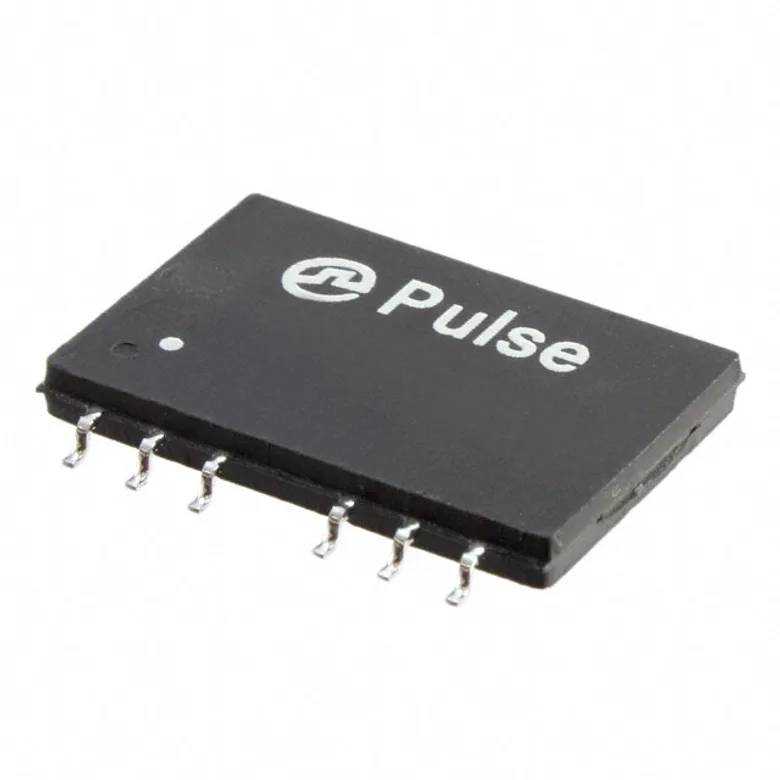

Image shown is representative only. Exact specifications should be obtained from the product datasheet.
Pulse Electronics PE-69012
Manufacturer
Manufacturer Product Number
PE-69012
Description
PULSE XFMR 1:1 TX 1:1 RX
Manufacturer Standard Lead Time Contact us
Detailed Description
LAN 10/100 Base-T Pulse Transformer 1:1 Transmitter, 1:1 Receiver Surface Mount
Datasheet View datasheet
Product Attributes
Type
Description
Manufacturer
Pulse Electronics
Product Status
Obsolete
Operating Temperature
0°C ~ 70°C
Transformer Type
LAN 10/100 Base-T
Turns Ratio - Primary:Secondary
1:1 Transmitter, 1:1 Receiver
ET (Volt-Time)
-
Size / Dimension
1.000" L x 0.350" W (25.40mm x 8.89mm)
Mounting Type
Surface Mount
Height - Seated (Max)
0.094" (2.39mm)
Inductance
-
Documents & Media
Resource Type
Link
Datasheets
Product Change Notices
Environmental & Export Classifications
Attribute
Description
Product Status
Obsolete
Additional Resources
Attribute
Description
Part Number Alias
PE-69012
3533413
Availability
Out of Stock
Updated
5/16/2026
In-Stock: 0
