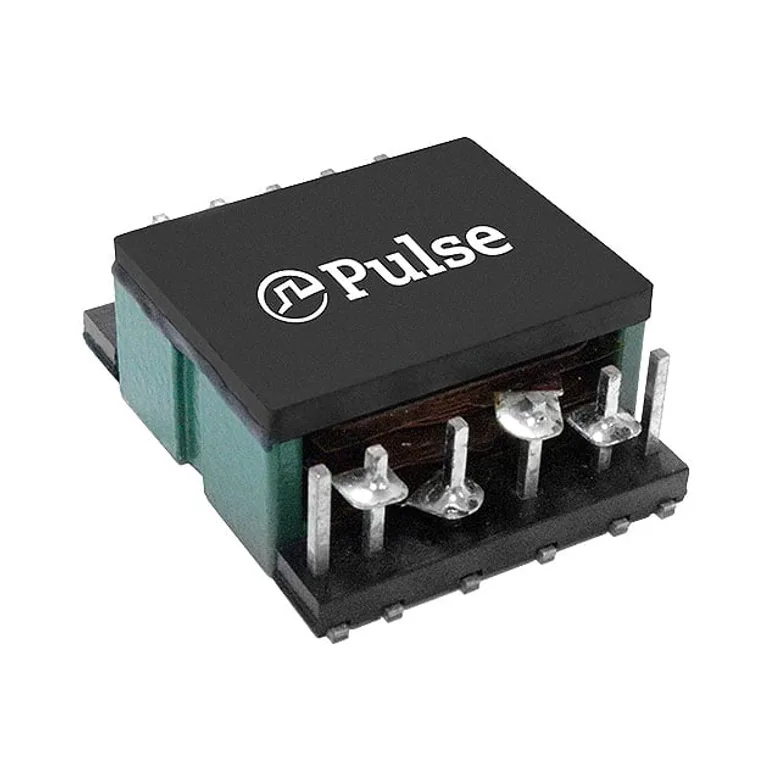

Pulse Electronics PH0804CNLT
Manufacturer
Manufacturer Product Number
PH0804CNLT
Description
XFMR DC/DC CONV SMD
Manufacturer Standard Lead Time Contact us
Detailed Description
For For DC/DC Converters SMPS Transformer 1500Vrms Isolation 200 ~ 700kHz Surface Mount
Datasheet View datasheet
EDA/CAD Models
Product Attributes
Type
Description
Manufacturer
Pulse Electronics
Operating Temperature
-40°C ~ 125°C
Applications
-
Size / Dimension
0.850" L x 0.970" W (21.59mm x 24.64mm)
Voltage - Isolation
1500Vrms
Mounting Type
Surface Mount
Style
Planar
Frequency
200 ~ 700kHz
Intended Chipset
-
Voltage - Primary
18 ~ 76V
Voltage - Auxiliary
-
Chipset Manufacturer
-
Height - Seated (Max)
0.378" (9.60mm)
Type
For DC/DC Converters
Inductance @ Frequency
-
Documents & Media
Resource Type
Link
CAD Models
Related Documents
Environmental Information
Featured Products
Additional Resources
Attribute
Description
Part Number Alias
PH0804CNLT
8556174
PH0804CNLT-ND
Availability
Out of Stock
Updated
5/16/2026
In-Stock: 0
Packaging Quantity Unit Price Ext Price
1 177.000 ₫ 177.000 ₫
177.000 ₫
All prices are shown in the selected currency
Tape & Reel (TR) · Digikey
Quantity Unit Price Ext Price
300
177.000 ₫
53.100.000 ₫
MOQ 300 · Order multiple 300
Alternate Packaging
PH0804CNL
XFMR DC/DC CONV SMD
208.000 ₫ Pulse Electronics
