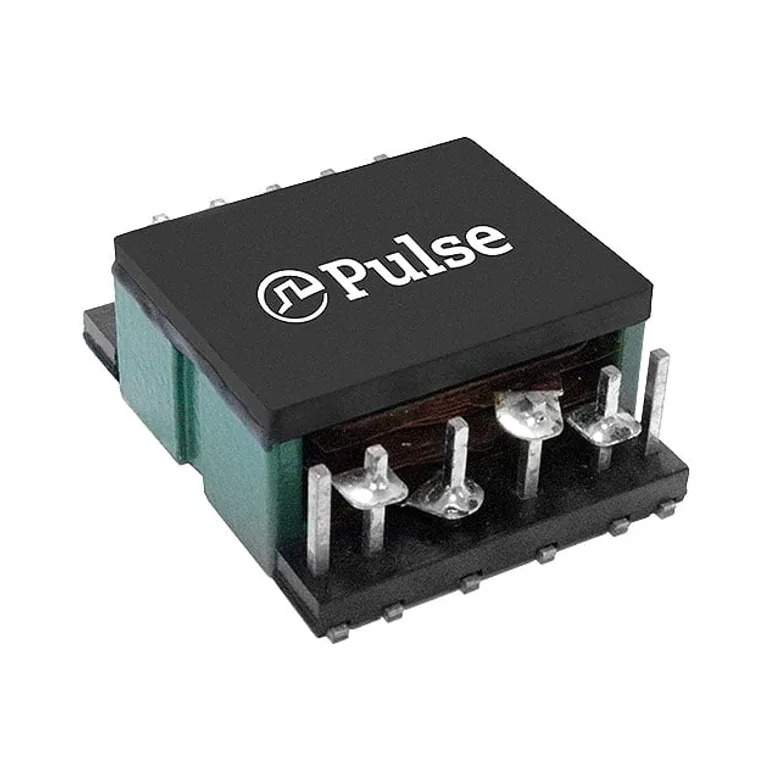

Image shown is representative only. Exact specifications should be obtained from the product datasheet.
Pulse Electronics PH0809CNL
Manufacturer
Manufacturer Product Number
PH0809CNL
Description
XFMR DC/DC CONV SMD
Manufacturer Standard Lead Time Contact us
Detailed Description
XFMR DC/DC CONV SMD
Datasheet View datasheet
Product Attributes
Type
Description
Manufacturer
Pulse Electronics
Operating Temperature
-40°C ~ 125°C
Applications
-
Size / Dimension
0.850" L x 0.970" W (21.59mm x 24.65mm)
Voltage - Isolation
1500Vrms
Mounting Type
Surface Mount
Style
Planar
Frequency
200 ~ 700kHz
Intended Chipset
-
Voltage - Primary
18 ~ 76V
Voltage - Auxiliary
-
Footprint
0.850" L x 0.970" W (21.59mm x 24.65mm)
Chipset Manufacturer
-
Height - Seated (Max)
0.388" (9.85mm)
Type
For DC/DC Converters
Inductance @ Frequency
-
Documents & Media
Resource Type
Link
Environmental Information
Product Change Notices
Featured Products
Additional Resources
Attribute
Description
Part Number Alias
PH0809CNL
6555155
553-3672-ND
Availability
Out of Stock
Updated
5/16/2026
In-Stock: 0
Packaging Quantity Unit Price Ext Price
1 208.000 ₫ 208.000 ₫
208.000 ₫
All prices are shown in the selected currency
Tray · Digikey
Quantity Unit Price Ext Price
30
208.000 ₫
6.240.000 ₫
60
202.000 ₫
12.120.000 ₫
90
198.000 ₫
17.820.000 ₫
150
193.000 ₫
28.950.000 ₫
210
190.000 ₫
39.900.000 ₫
300
187.000 ₫
56.100.000 ₫
750
180.000 ₫
135.000.000 ₫
MOQ 30 · Order multiple 30
