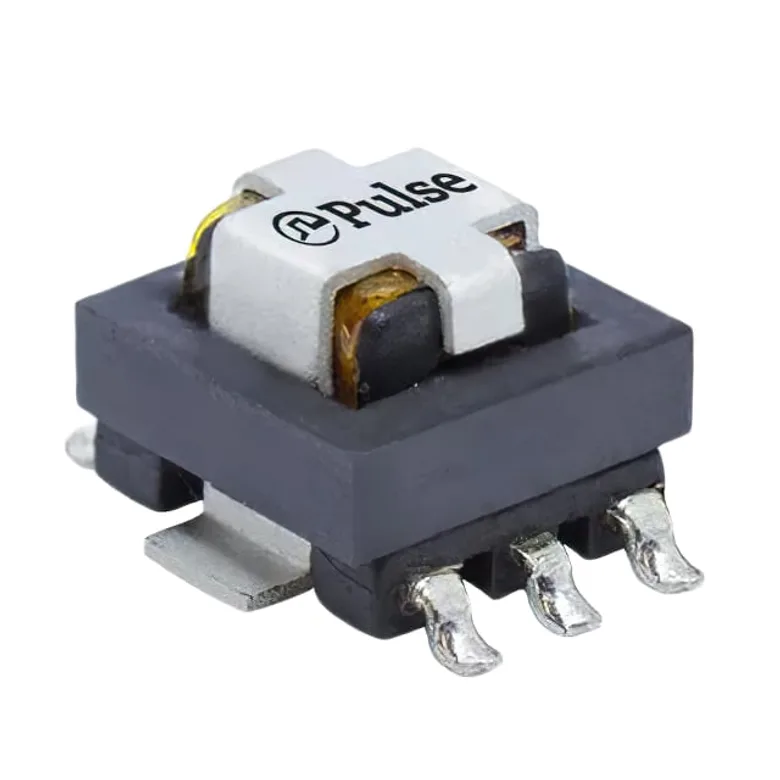

Pulse Electronics PH9494.150NLT
Manufacturer
Manufacturer Product Number
PH9494.150NLT
Description
CURR SENSE XFMR 150:1 30A SMD
Manufacturer Standard Lead Time Contact us
Detailed Description
30 A 150:1 Current Sense Transformer 20kHz 0.35mOhm Primary, 5.7Ohm Secondary 5.63 mH Surface Mount
Datasheet View datasheet
EDA/CAD Models
Product Attributes
Type
Description
Manufacturer
Pulse Electronics
Termination Style
Gull Wing
DC Resistance (DCR)
0.35mOhm Primary, 5.7Ohm Secondary
Turns Ratio - Primary:Secondary
150:1
ET (Volt-Time)
-
Frequency Range
20kHz
Size / Dimension
0.504" L x 0.382" W (12.80mm x 9.70mm)
Mounting Type
Surface Mount
Ratings
-
Height - Seated (Max)
0.283" (7.20mm)
Type
Invasive
Current Ratio
-
Inductance
5.63 mH
Current Rating (Amps)
30 A
Weight
-
Documents & Media
Resource Type
Link
Datasheets
CAD Models
Related Documents
Environmental Information
Product Change Notices
Featured Products
Additional Resources
Attribute
Description
Part Number Alias
PH9494.150NLT
10280838
553-PH9494.150NLTCT-ND
553-PH9494.150NLTTR-ND
