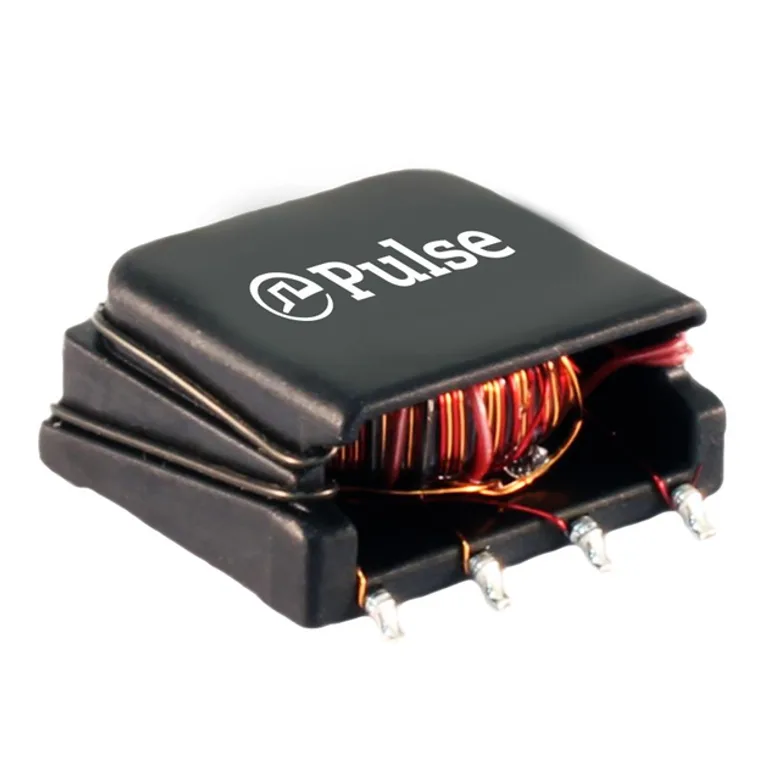

Image shown is representative only. Exact specifications should be obtained from the product datasheet.
Pulse Electronics PM2155.012NLT
Manufacturer
Manufacturer Product Number
PM2155.012NLT
Description
XFMR PUSH-PULL SIDE CAR S NPB
Manufacturer Standard Lead Time Contact us
Detailed Description
2.6mH Isolation and Data Interface (Encapsulated) Pulse Transformer 1CT:2CT Surface Mount
Datasheet View datasheet
Product Attributes
Type
Description
Manufacturer
Pulse Electronics
Operating Temperature
-40°C ~ 125°C
Transformer Type
Isolation and Data Interface (Encapsulated)
Turns Ratio - Primary:Secondary
1CT:2CT
ET (Volt-Time)
98VµS
Size / Dimension
0.630" L x 0.591" W (16.00mm x 15.00mm)
Mounting Type
Surface Mount
Height - Seated (Max)
0.295" (7.50mm)
Inductance
2.6mH
Weight
-
Documents & Media
Resource Type
Link
Datasheets
Environmental Information
Product Change Notices
Featured Products
Additional Resources
Attribute
Description
Part Number Alias
PM2155.012NLT
19561768
553-PM2155.012NLTCT-ND
553-PM2155.012NLTDKR-ND
553-PM2155.012NLTTR-ND
Availability
In Stock
Updated
5/16/2026
In-Stock: 651
Packaging Quantity Unit Price Ext Price
1 83.000 ₫ 83.000 ₫
83.000 ₫
All prices are shown in the selected currency
Cut Tape (CT) · Digikey
Quantity Unit Price Ext Price
1
83.000 ₫
83.000 ₫
10
75.000 ₫
750.000 ₫
25
72.000 ₫
1.800.000 ₫
50
70.000 ₫
3.500.000 ₫
100
68.000 ₫
6.800.000 ₫
MOQ 1 · Order multiple 1
Digi-Reel® · Digikey
Quantity Unit Price Ext Price
1
83.000 ₫
83.000 ₫
10
75.000 ₫
750.000 ₫
25
72.000 ₫
1.800.000 ₫
50
70.000 ₫
3.500.000 ₫
100
68.000 ₫
6.800.000 ₫
MOQ 1 · Order multiple 1
Tape & Reel (TR) · Digikey
Quantity Unit Price Ext Price
300
65.000 ₫
19.500.000 ₫
600
63.000 ₫
37.800.000 ₫
900
62.000 ₫
55.800.000 ₫
1,500
60.000 ₫
90.000.000 ₫
2,100
59.000 ₫
123.900.000 ₫
3,000
58.000 ₫
174.000.000 ₫
MOQ 300 · Order multiple 300
