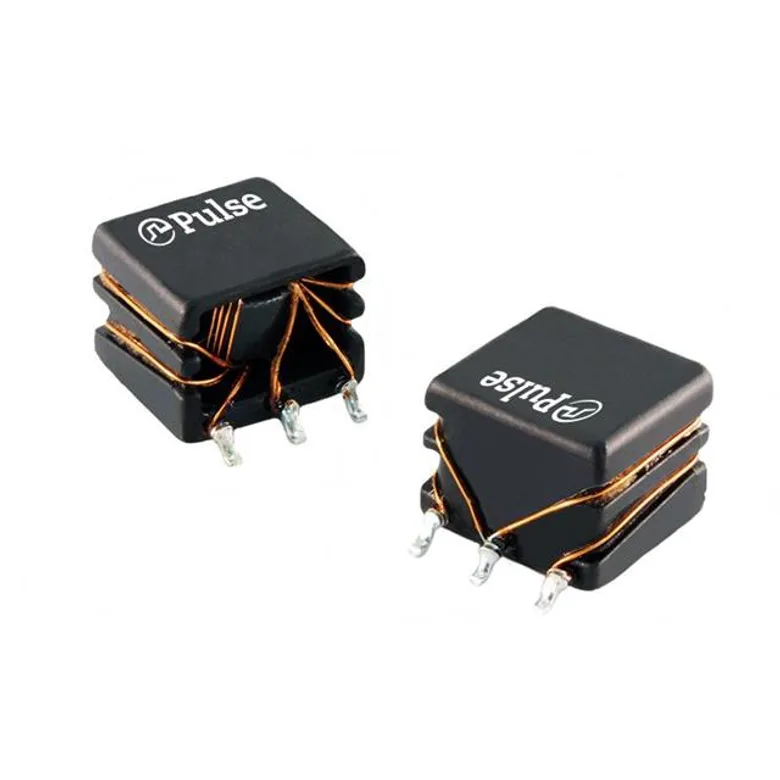

Image shown is representative only. Exact specifications should be obtained from the product datasheet.
Pulse Electronics PM2185.021NL
Manufacturer
Manufacturer Product Number
PM2185.021NL
Description
XFMR GATE DRIVE SIDE CAR NPB
Manufacturer Standard Lead Time Contact us
Detailed Description
538µH Isolation and Data Interface (Encapsulated) Pulse Transformer 2:1CT Surface Mount
Datasheet View datasheet
EDA/CAD Models
Product Attributes
Type
Description
Manufacturer
Pulse Electronics
Operating Temperature
-40°C ~ 125°C
Transformer Type
Isolation and Data Interface (Encapsulated)
Turns Ratio - Primary:Secondary
2:1CT
ET (Volt-Time)
24VµS
Size / Dimension
0.362" L x 0.323" W (9.20mm x 8.20mm)
Mounting Type
Surface Mount
Height - Seated (Max)
0.299" (7.60mm)
Inductance
538µH
Weight
-
Documents & Media
Resource Type
Link
Datasheets
CAD Models
Related Documents
Environmental Information
Additional Resources
Attribute
Description
Part Number Alias
PM2185.021NL
16511059
553-PM2185.021NL-ND
Availability
Out of Stock
Updated
5/16/2026
In-Stock: 0
Packaging Quantity Unit Price Ext Price
1 51.000 ₫ 51.000 ₫
51.000 ₫
All prices are shown in the selected currency
Tray · Digikey
Quantity Unit Price Ext Price
1,280
51.000 ₫
65.280.000 ₫
MOQ 1,280 · Order multiple 1,280
