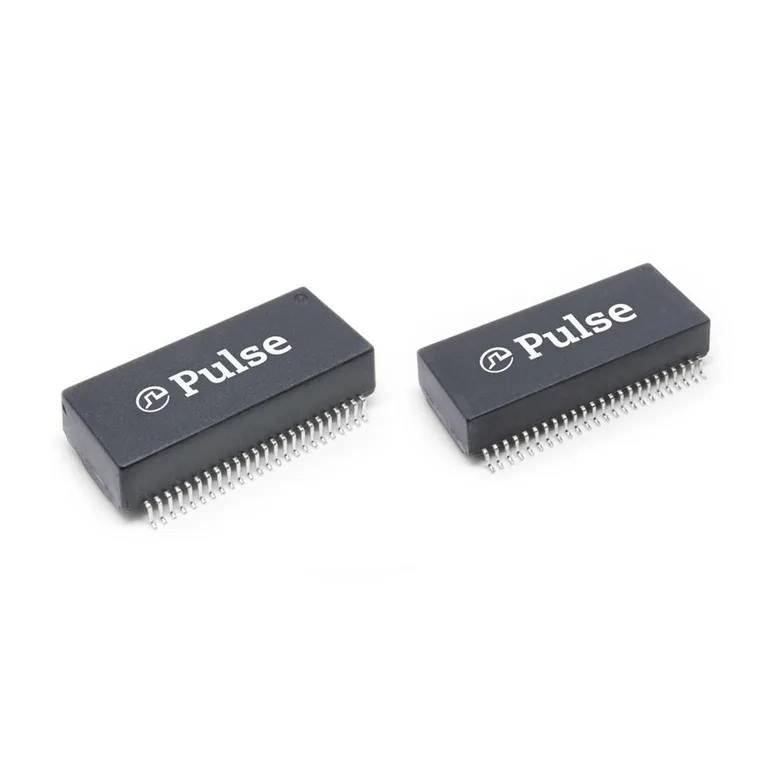

Image shown is representative only. Exact specifications should be obtained from the product datasheet.
Pulse Electronics QGS2014R
Manufacturer
Manufacturer Product Number
QGS2014R
Description
MDL 5G DUAL PORT N/A
Manufacturer Standard Lead Time Contact us
Detailed Description
180µH LAN 2.5/5G Base-T Pulse Transformer 1:1CT Transmitter, 1:1CT Receiver Surface Mount
Datasheet View datasheet
Product Attributes
Type
Description
Manufacturer
Pulse Electronics
Operating Temperature
0°C ~ 70°C
Transformer Type
LAN 2.5/5G Base-T
Turns Ratio - Primary:Secondary
1:1CT Transmitter, 1:1CT Receiver
ET (Volt-Time)
-
Size / Dimension
1.094" L x 0.480" W (27.80mm x 12.20mm)
Mounting Type
Surface Mount
Height - Seated (Max)
0.283" (7.20mm)
Inductance
180µH
Weight
-
Documents & Media
Additional Resources
Attribute
Description
Part Number Alias
QGS2014R
16517247
553-QGS2014RTR-ND
Availability
Out of Stock
Updated
5/16/2026
In-Stock: 0
Packaging Quantity Unit Price Ext Price
1 149.000 ₫ 149.000 ₫
149.000 ₫
All prices are shown in the selected currency
Tape & Reel (TR) · Digikey
Quantity Unit Price Ext Price
700
149.000 ₫
104.300.000 ₫
MOQ 700 · Order multiple 700
