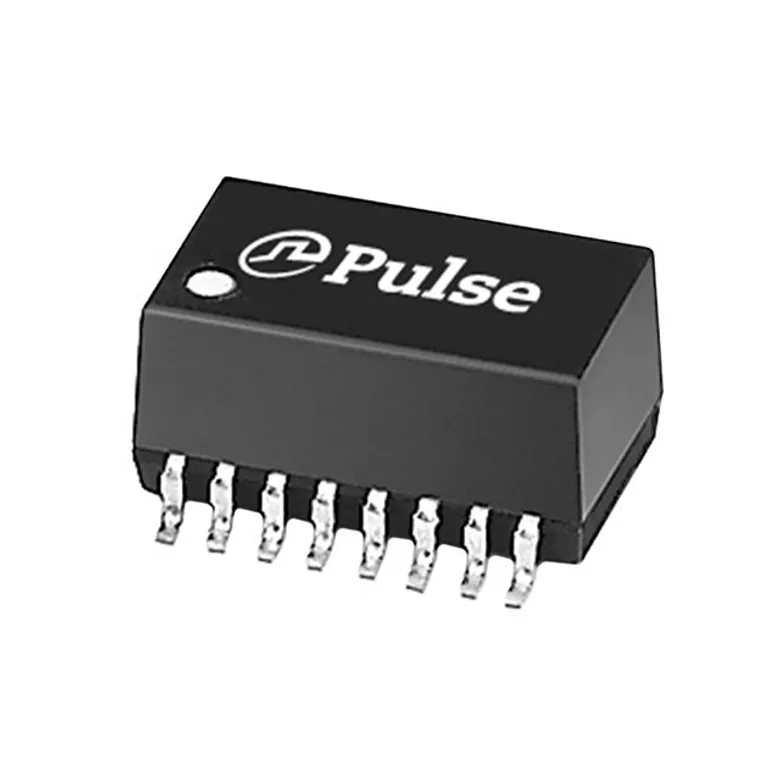

Image shown is representative only. Exact specifications should be obtained from the product datasheet.
Pulse Electronics ST7010QNL
Manufacturer
Manufacturer Product Number
ST7010QNL
Description
PULSE XFMR 1CT:1.414CT 1CT:1CT
Manufacturer Standard Lead Time Contact us
Detailed Description
18µH, 60µH, 80µH, 175µH LAN 10G Base-T Pulse Transformer 1CT:1.414CT Transmitter, 1CT:1CT Receiver Surface Mount
Datasheet View datasheet
EDA/CAD Models
Product Attributes
Type
Description
Manufacturer
Pulse Electronics
Operating Temperature
0°C ~ 70°C
Transformer Type
LAN 10G Base-T
Turns Ratio - Primary:Secondary
1CT:1.414CT Transmitter, 1CT:1CT Receiver
ET (Volt-Time)
-
Size / Dimension
0.455" L x 0.275" W (11.56mm x 6.99mm)
Mounting Type
Surface Mount
Height - Seated (Max)
0.225" (5.72mm)
Inductance
18µH, 60µH, 80µH, 175µH
Weight
-
Documents & Media
Resource Type
Link
Datasheets
CAD Models
Drawings
Related Documents
Environmental Information
Product Change Notices
Additional Resources
Attribute
Description
Part Number Alias
ST7010QNL
3533287
553-3915-5-ND
Availability
In Stock
Updated
5/16/2026
In-Stock: 653
Packaging Quantity Unit Price Ext Price
1 107.000 ₫ 107.000 ₫
107.000 ₫
All prices are shown in the selected currency
Tube · Digikey
Quantity Unit Price Ext Price
1
107.000 ₫
107.000 ₫
10
97.000 ₫
970.000 ₫
45
91.000 ₫
4.095.000 ₫
90
88.000 ₫
7.920.000 ₫
135
87.000 ₫
11.745.000 ₫
270
84.000 ₫
22.680.000 ₫
540
81.000 ₫
43.740.000 ₫
1,035
79.000 ₫
81.765.000 ₫
MOQ 1 · Order multiple 1
