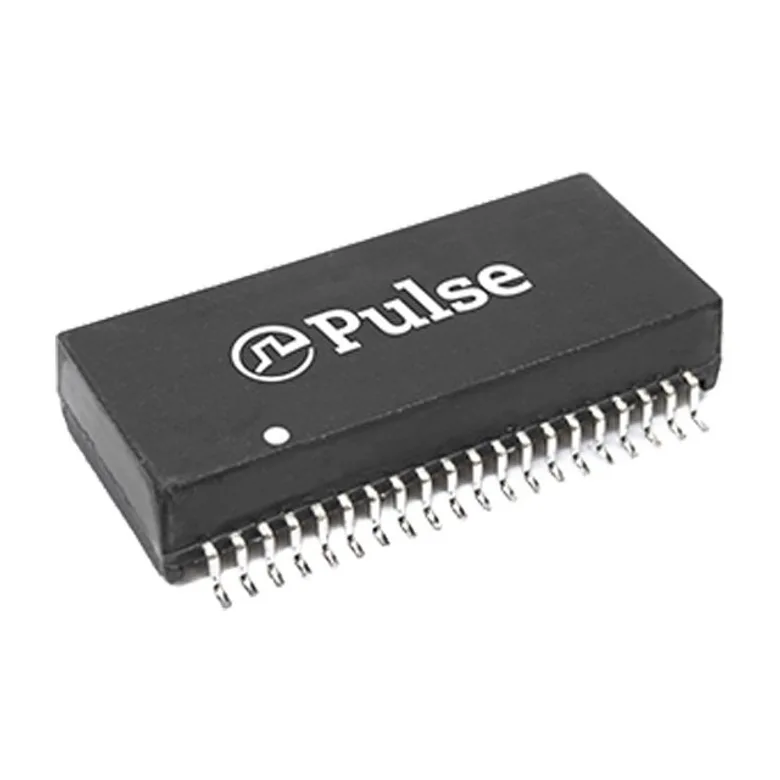

Image shown is representative only. Exact specifications should be obtained from the product datasheet.
Pulse Electronics T1114NL
Manufacturer
Manufacturer Product Number
T1114NL
Description
XFRMR T1/E1/CEPT/ISDN-PRI 1:2CT
Manufacturer Standard Lead Time Contact us
Detailed Description
XFRMR T1/E1/CEPT/ISDN-PRI 1:2CT
Datasheet View datasheet
Product Attributes
Type
Description
Manufacturer
Pulse Electronics
Operating Temperature
-40°C ~ 85°C
Transformer Type
T1/E1 (Quad)
Turns Ratio - Primary:Secondary
1:2CT Transmitter, 1CT:2 Receiver
ET (Volt-Time)
-
Size / Dimension
1.125" L x 0.485" W (28.58mm x 12.32mm)
Mounting Type
Surface Mount
Height - Seated (Max)
0.230" (5.84mm)
Inductance
1.2mH, 1.2mH
Weight
-
Documents & Media
Additional Resources
Attribute
Description
Part Number Alias
T1114NL
2265920
T1114NL-ND
Availability
Out of Stock
Updated
5/16/2026
In-Stock: 0
Packaging Quantity Unit Price Ext Price
1 166.000 ₫ 166.000 ₫
166.000 ₫
All prices are shown in the selected currency
Tube · Digikey
Quantity Unit Price Ext Price
285
166.000 ₫
47.310.000 ₫
MOQ 285 · Order multiple 285
