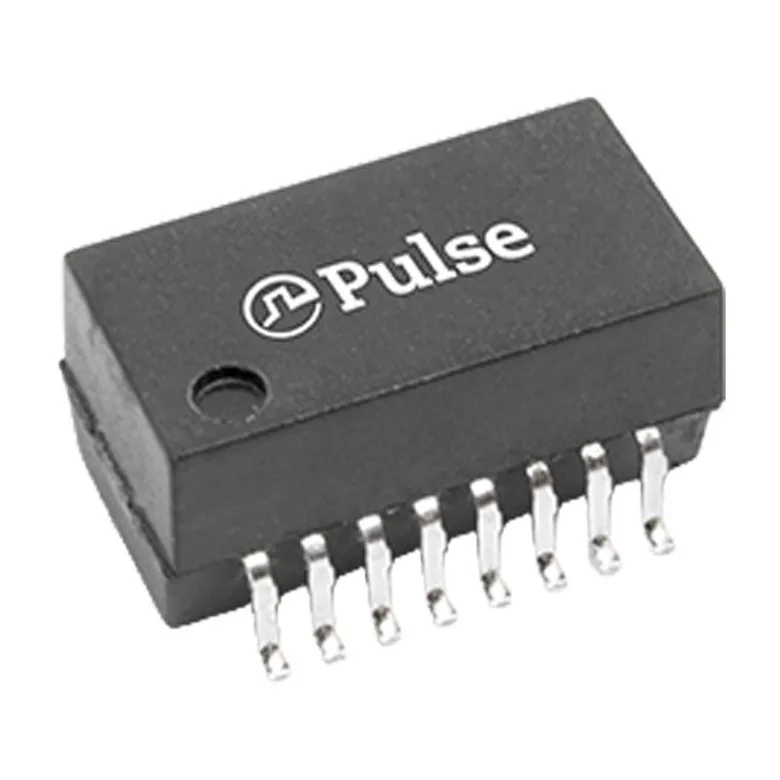

Image shown is representative only. Exact specifications should be obtained from the product datasheet.
Pulse Electronics T1176NLT
Manufacturer
Manufacturer Product Number
T1176NLT
Description
MODULE INTERFACE 1CT:2.4CT SMD
Manufacturer Standard Lead Time Contact us
Detailed Description
1.2mH T1/E1 (Dual) Pulse Transformer 1CT:2.4CT Transmitter, 1CT:1CT Receiver Surface Mount
Datasheet View datasheet
EDA/CAD Models
Product Attributes
Type
Description
Manufacturer
Pulse Electronics
Operating Temperature
-40°C ~ 85°C
Transformer Type
T1/E1 (Dual)
Turns Ratio - Primary:Secondary
1CT:2.4CT Transmitter, 1CT:1CT Receiver
ET (Volt-Time)
-
Size / Dimension
0.690" L x 0.480" W (17.53mm x 12.20mm)
Mounting Type
Surface Mount
Height - Seated (Max)
0.227" (5.76mm)
Inductance
1.2mH
Weight
-
Documents & Media
Resource Type
Link
Datasheets
CAD Models
Environmental Information
Product Change Notices
Additional Resources
Attribute
Description
Part Number Alias
T1176NLT
2265555
T1176NLT-ND
Availability
Out of Stock
Updated
5/16/2026
In-Stock: 0
Packaging Quantity Unit Price Ext Price
1 270.000 ₫ 270.000 ₫
270.000 ₫
All prices are shown in the selected currency
Tape & Reel (TR) · Digikey
Quantity Unit Price Ext Price
300
270.000 ₫
81.000.000 ₫
MOQ 300 · Order multiple 300
Alternate Packaging
T1176NL
MODULE INTERFACE 1CT:2.4CT SMD
410.000 ₫ Pulse Electronics
Substitutes
T1176NL
MODULE INTERFACE 1CT:2.4CT SMD
410.000 ₫ Pulse Electronics
