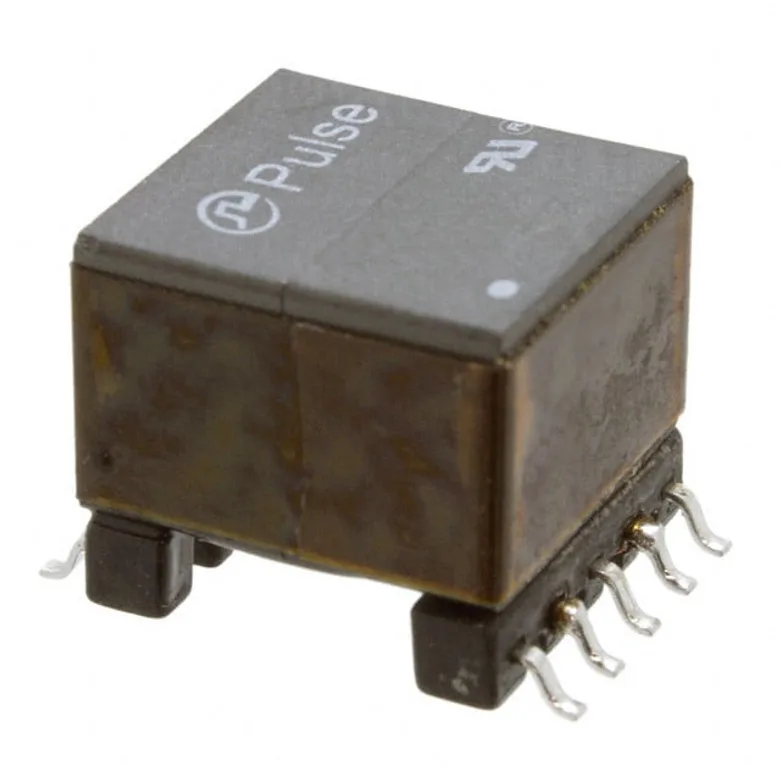

Image shown is representative only. Exact specifications should be obtained from the product datasheet.
Pulse Electronics T6003NL
Manufacturer
Manufacturer Product Number
T6003NL
Description
AUDIO XFMR 600 / 600 SMD
Manufacturer Standard Lead Time Contact us
Detailed Description
AUDIO XFMR 600 / 600 SMD
Datasheet View datasheet
Product Attributes
Type
Description
Manufacturer
Pulse Electronics
Return Loss
20dB @ 200Hz, 30dB @ 1kHz, 25dB @ 10kHz
Operating Temperature
-
Termination Style
Gull Wing
Transformer Type
General Purpose
Turns Ratio - Primary:Secondary
1:1
Insertion Loss
1dB @ 200Hz, 1dB @ 1kHz, 1dB @ 20kHz, 1.9dB @ 100kHz
Frequency Range
-
Size / Dimension
0.530" L x 0.516" W (13.46mm x 13.11mm)
Voltage - Isolation
1500Vrms
Approval Agency
-
Mounting Type
Surface Mount
Height - Seated (Max)
0.485" (12.32mm)
Impedance - Primary (Ohms)
600
Impedance - Secondary (Ohms)
600
DC Resistance (DCR) - Primary
55Ohm
DC Resistance (DCR) - Secondary
70Ohm
Frequency Response
-
Power Level
-
Weight
0.015 lb (6.8 g)
Documents & Media
Additional Resources
Attribute
Description
Part Number Alias
T6003NL
2265454
553-1916-ND
Availability
Out of Stock
Updated
5/16/2026
In-Stock: 0
Packaging Quantity Unit Price Ext Price
1 96.000Â â‚« 96.000Â â‚«
96.000Â â‚«
All prices are shown in the selected currency
Tray · Digikey
Quantity Unit Price Ext Price
5,040
96.000Â â‚«
483.840.000Â â‚«
MOQ 5,040 · Order multiple 5,040
