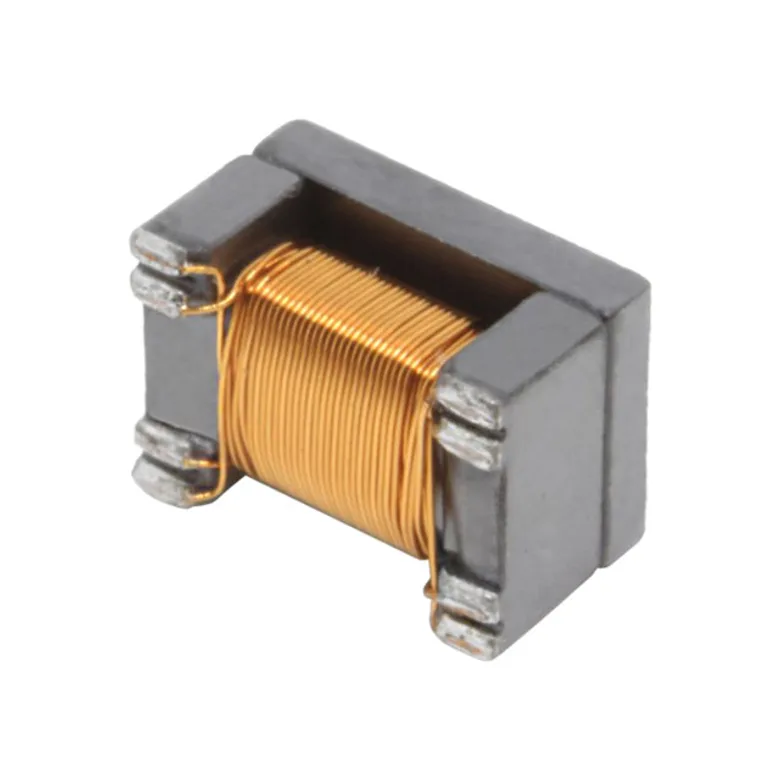

Image shown is representative only. Exact specifications should be obtained from the product datasheet.
Pulse Electronics TC1000
Manufacturer
Manufacturer Product Number
TC1000
Description
TRANSFORMER LAN 1GB PHY
Manufacturer Standard Lead Time Contact us
Detailed Description
200µH LAN 1000 Base-T Pulse Transformer 1:1 Surface Mount
Datasheet View datasheet
EDA/CAD Models
Product Attributes
Type
Description
Manufacturer
Pulse Electronics
Operating Temperature
-40°C ~ 85°C
Transformer Type
LAN 1000 Base-T
Turns Ratio - Primary:Secondary
1:1
ET (Volt-Time)
-
Size / Dimension
0.185" L x 0.134" W (4.70mm x 3.40mm)
Mounting Type
Surface Mount
Height - Seated (Max)
0.118" (3.00mm)
Inductance
200µH
Weight
-
Documents & Media
Resource Type
Link
Datasheets
CAD Models
Environmental Information
Additional Resources
Attribute
Description
Part Number Alias
TC1000
15298210
553-TC1000TR-ND
Availability
Out of Stock
Updated
5/16/2026
In-Stock: 0
Packaging Quantity Unit Price Ext Price
1 28.000 ₫ 28.000 ₫
28.000 ₫
All prices are shown in the selected currency
Tape & Reel (TR) · Digikey
Quantity Unit Price Ext Price
4,000
28.000 ₫
112.000.000 ₫
MOQ 4,000 · Order multiple 4,000
