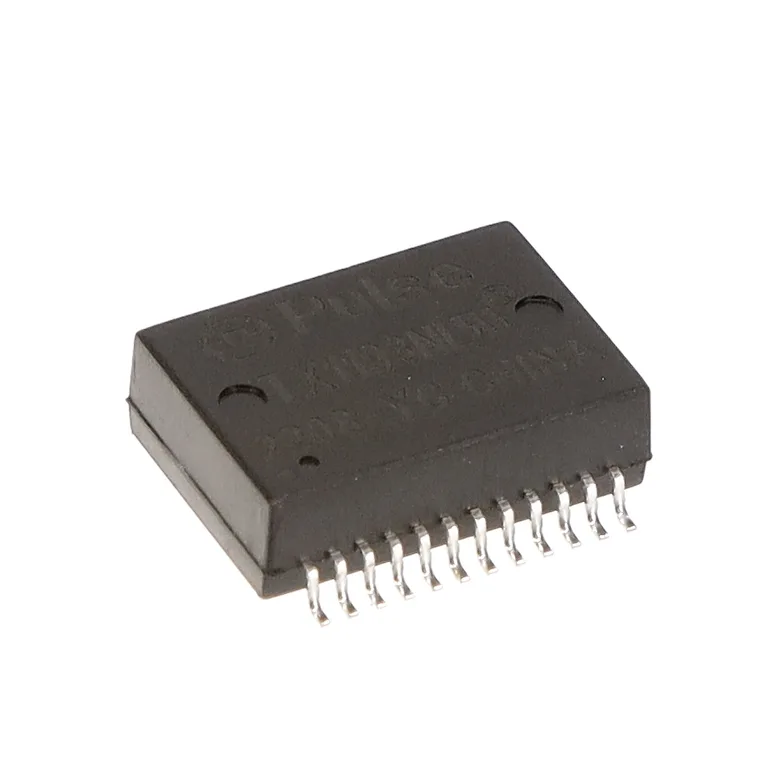

Pulse Electronics TX1193NLT
Manufacturer
Manufacturer Product Number
TX1193NLT
Description
MODULE 1CT:2CT 1.2MH SMD
Manufacturer Standard Lead Time Contact us
Detailed Description
1.2mH T1/E1 (Dual) Pulse Transformer 1CT:2CT Transmitter, 1CT:1CT Receiver Surface Mount
Datasheet View datasheet
EDA/CAD Models
Product Attributes
Type
Description
Manufacturer
Pulse Electronics
Operating Temperature
-40°C ~ 85°C
Transformer Type
T1/E1 (Dual)
Turns Ratio - Primary:Secondary
1CT:2CT Transmitter, 1CT:1CT Receiver
ET (Volt-Time)
-
Size / Dimension
0.690" L x 0.480" W (17.53mm x 12.20mm)
Mounting Type
Surface Mount
Height - Seated (Max)
0.227" (5.76mm)
Inductance
1.2mH
Weight
0.14 oz (3.99 g)
