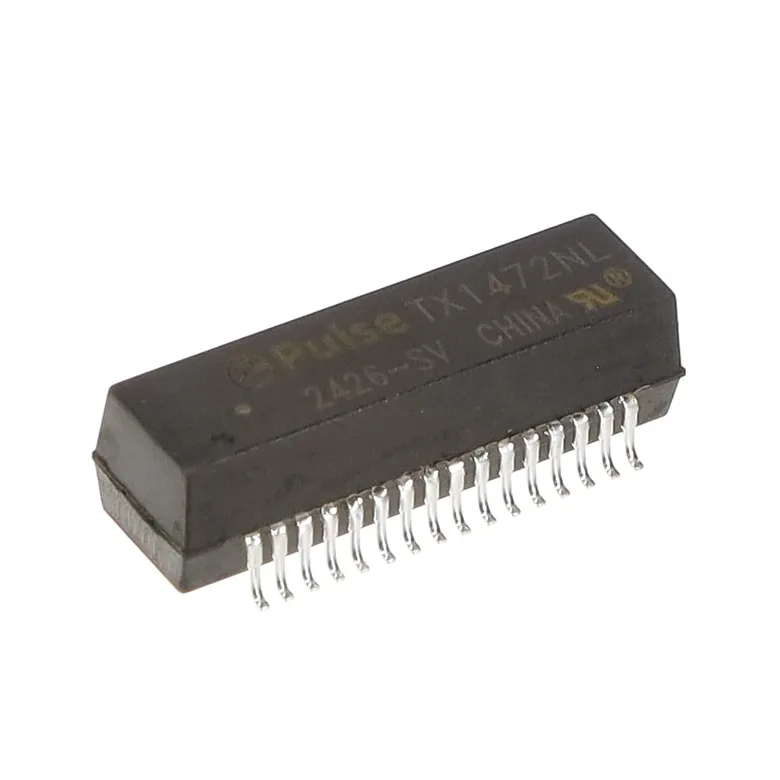

Image shown is representative only. Exact specifications should be obtained from the product datasheet.
Pulse Electronics TX1472NLT
Manufacturer
Manufacturer Product Number
TX1472NLT
Description
XFRMR OCTAL 1:2.4/1:1 1.2MH SMD
Manufacturer Standard Lead Time Contact us
Detailed Description
1.2mH T1/E1 (Octal) Pulse Transformer 1:2.4, 1:1 Surface Mount
Datasheet View datasheet
Product Attributes
Type
Description
Manufacturer
Pulse Electronics
Operating Temperature
-40°C ~ 85°C
Transformer Type
T1/E1 (Octal)
Turns Ratio - Primary:Secondary
1:2.4, 1:1
ET (Volt-Time)
-
Size / Dimension
1.000" L x 0.310" W (25.40mm x 7.87mm)
Mounting Type
Surface Mount
Height - Seated (Max)
0.295" (7.49mm)
Inductance
1.2mH
Weight
0.1 oz (2.85 g)
Documents & Media
Additional Resources
Attribute
Description
Part Number Alias
TX1472NLT
8120671
553-TX1472NLTCT-ND
553-TX1472NLTDKR-ND
553-TX1472NLTTR-ND
Availability
In Stock
Updated
5/16/2026
In-Stock: 480
Packaging Quantity Unit Price Ext Price
1 254.000 ₫ 254.000 ₫
254.000 ₫
All prices are shown in the selected currency
Cut Tape (CT) · Digikey
Quantity Unit Price Ext Price
1
254.000 ₫
254.000 ₫
10
229.000 ₫
2.290.000 ₫
25
220.000 ₫
5.500.000 ₫
50
213.000 ₫
10.650.000 ₫
100
206.000 ₫
20.600.000 ₫
MOQ 1 · Order multiple 1
Digi-Reel® · Digikey
Quantity Unit Price Ext Price
1
254.000 ₫
254.000 ₫
10
229.000 ₫
2.290.000 ₫
25
220.000 ₫
5.500.000 ₫
50
213.000 ₫
10.650.000 ₫
100
206.000 ₫
20.600.000 ₫
MOQ 1 · Order multiple 1
Tape & Reel (TR) · Digikey
Quantity Unit Price Ext Price
200
200.000 ₫
40.000.000 ₫
400
194.000 ₫
77.600.000 ₫
600
190.000 ₫
114.000.000 ₫
1,000
186.000 ₫
186.000.000 ₫
1,400
183.000 ₫
256.200.000 ₫
MOQ 200 · Order multiple 200
Alternate Packaging
TX1472NL
XFRMR OCTAL 1:2.4/1:1 1.2MH SMD
254.000 ₫ Pulse Electronics
Substitutes
TX1472NL
XFRMR OCTAL 1:2.4/1:1 1.2MH SMD
254.000 ₫ Pulse Electronics
