Image shown is representative only. Exact specifications should be obtained from the product datasheet.

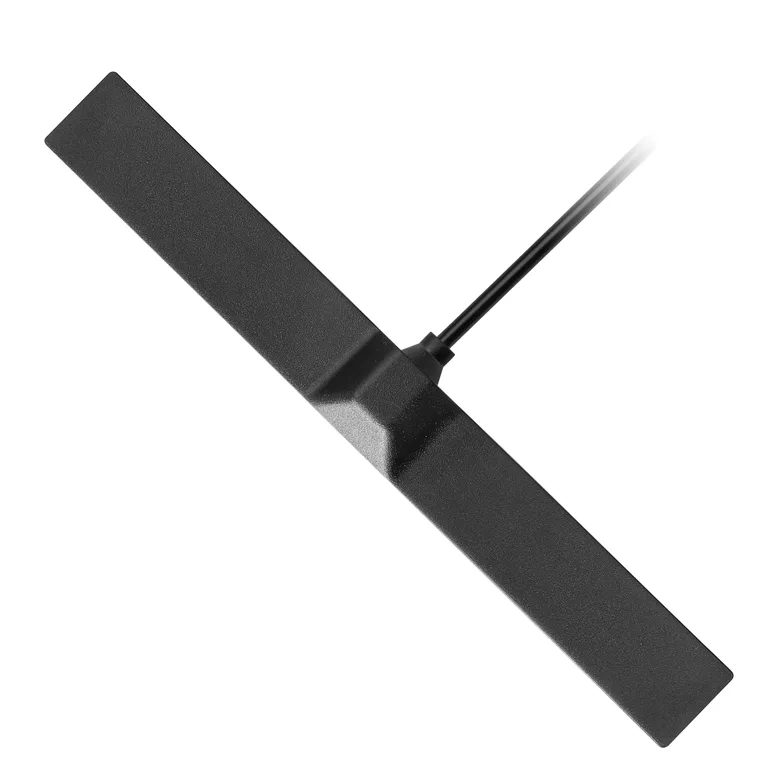

Quectel YE0010AA
Manufacturer
Manufacturer Product Number
YE0010AA
Description
LTE EXT ANTENNA 1M SMA ADHESIVE
Manufacturer Standard Lead Time Contact us
Detailed Description
LTE EXT ANTENNA 1M SMA ADHESIVE
Datasheet View datasheet
Product Attributes
Type
Description
Manufacturer
Quectel
Return Loss
-
Frequency Range
698MHz ~ 960MHz, 698MHz ~ 1.28GHz, 1.176GHz ~ 1.61GHz, 1.4GHz ~ 2.17GHz, 1.71GHz ~ 2.69GHz, 2.17GHz ~ 2.7GHz, 3.3GHz ~ 4GHz, 4GHz ~ 5GHz, 5GHz ~ 6GHz
Applications
LTE
Gain
3dBi, 3dBi, 3dBi, 2.9dBi
Features
Cable - 1m
Termination
SMA Male
Mounting Type
Adhesive
Ingress Protection
IP66
Number of Bands
9
VSWR
3
Antenna Type
Flat Bar
Height (Max)
0.232" (5.90mm)
Frequency Group
Wide Band
Frequency (Center/Band)
829MHz, 1.228GHz, 1.505GHz, 1.699GHz, 1.94GHz, 2.43GHz, 3.65GHz, 4.5GHz, 5.5GHz
RF Family/Standard
Cellular
Documents & Media
Additional Resources
Attribute
Description
Part Number Alias
YE0010AA
17101903
2958-YE0010AA-ND
Availability
In Stock
Updated
5/16/2026
In-Stock: 756
Packaging Quantity Unit Price Ext Price
1 177.000Â â‚« 177.000Â â‚«
177.000Â â‚«
All prices are shown in the selected currency
Bag · Digikey
Quantity Unit Price Ext Price
1
177.000Â â‚«
177.000Â â‚«
20
128.000Â â‚«
2.560.000Â â‚«
40
121.000Â â‚«
4.840.000Â â‚«
100
115.000Â â‚«
11.500.000Â â‚«
260
109.000Â â‚«
28.340.000Â â‚«
500
106.000Â â‚«
53.000.000Â â‚«
1,000
103.000Â â‚«
103.000.000Â â‚«
2,500
101.000Â â‚«
252.500.000Â â‚«
MOQ 1 · Order multiple 1
