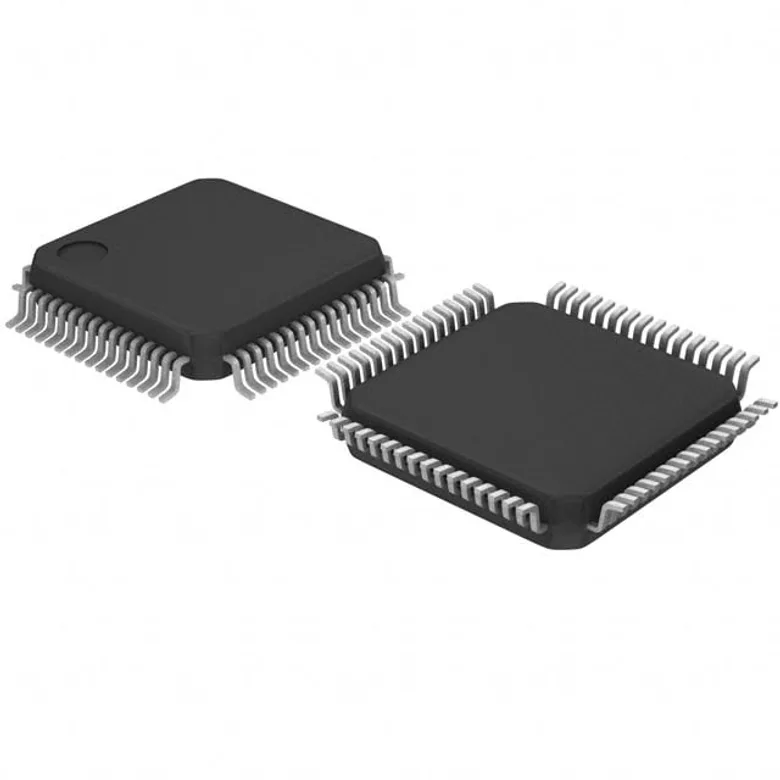

Image shown is representative only. Exact specifications should be obtained from the product datasheet.
Renesas Electronics Corporation DF36014GFPV
Manufacturer
Manufacturer Product Number
DF36014GFPV
Description
IC MCU 16BIT 32KB FLASH 64LQFP
Manufacturer Standard Lead Time Contact us
Detailed Description
H8/300H H8® H8/300H Tiny Microcontroller IC 16-Bit 20MHz 32KB (32K x 8) FLASH 64-LFQFP (10x10)
Product Attributes
Type
Description
Manufacturer
Renesas Electronics Corporation
Product Status
Obsolete
Number of I/O
30
Operating Temperature
-20°C ~ 75°C (TA)
DigiKey Programmable
Not Verified
Oscillator Type
Internal
Program Memory Type
FLASH
EEPROM Size
-
Core Processor
H8/300H
Data Converters
A/D 4x10b
Core Size
16-Bit
Mounting Type
Surface Mount
Supplier Device Package
64-LFQFP (10x10)
Speed
20MHz
Program Memory Size
32KB (32K x 8)
RAM Size
2K x 8
Package / Case
64-LQFP
Voltage - Supply (Vcc/Vdd)
3V ~ 5.5V
Connectivity
SCI
Peripherals
LVD, POR, PWM, WDT
Documents & Media
Resource Type
Link
Manuals
Training Modules
Environmental & Export Classifications
Attribute
Description
Product Status
Obsolete
Additional Resources
Attribute
Description
Part Number Alias
DF36014GFPV
964845
Availability
Out of Stock
Updated
5/16/2026
In-Stock: 0
Packaging Quantity Unit Price Ext Price
1 0Â â‚« 0Â â‚«
0Â â‚«
All prices are shown in the selected currency
Substitutes
R5F213M6UNNP#U0
IC MCU 16BIT 32KB FLASH 40HWQFN
