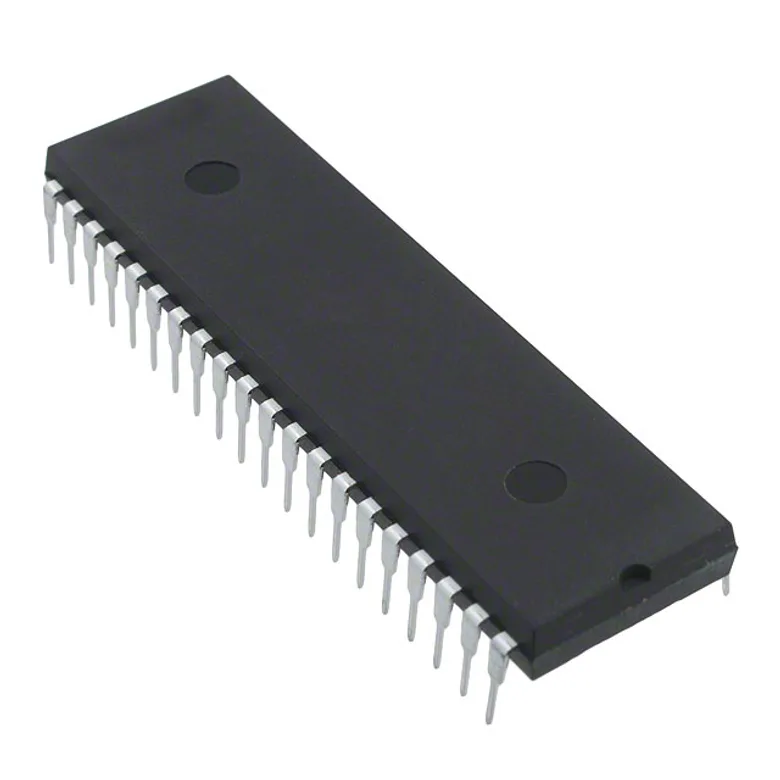

Image shown is representative only. Exact specifications should be obtained from the product datasheet.
Renesas Electronics Corporation IP82C55AZ
Manufacturer
Manufacturer Product Number
IP82C55AZ
Description
IC XPNDR PARALLEL 40DIP
Manufacturer Standard Lead Time Contact us
Detailed Description
IC XPNDR PARALLEL 40DIP
Datasheet View datasheet
EDA/CAD Models
Product Attributes
Type
Description
Manufacturer
Renesas Electronics Corporation
Product Status
End of life
Operating Temperature
-40°C ~ 85°C
Interrupt Output
No
DigiKey Programmable
Not Verified
Voltage - Supply
4.5V ~ 5.5V
Output Type
Open Drain
Features
-
Mounting Type
Through Hole
Supplier Device Package
40-PDIP
Interface
Parallel
Number of I/O
24
Package / Case
40-DIP (0.600", 15.24mm)
Current - Output Source/Sink
2.5mA
Documents & Media
Resource Type
Link
Datasheets
EDA Models
Environmental & Export Classifications
Attribute
Description
Product Status
End of life
Additional Resources
Attribute
Description
Part Number Alias
IP82C55AZ
1063284
IP82C55AZ-ND
Availability
In Stock
Updated
5/16/2026
In-Stock: 77
Packaging Quantity Unit Price Ext Price
1 968.000 ₫ 968.000 ₫
968.000 ₫
All prices are shown in the selected currency
Tube · Digikey
Quantity Unit Price Ext Price
1
968.000 ₫
968.000 ₫
18
757.000 ₫
13.626.000 ₫
27
744.000 ₫
20.088.000 ₫
MOQ 1 · Order multiple 1
