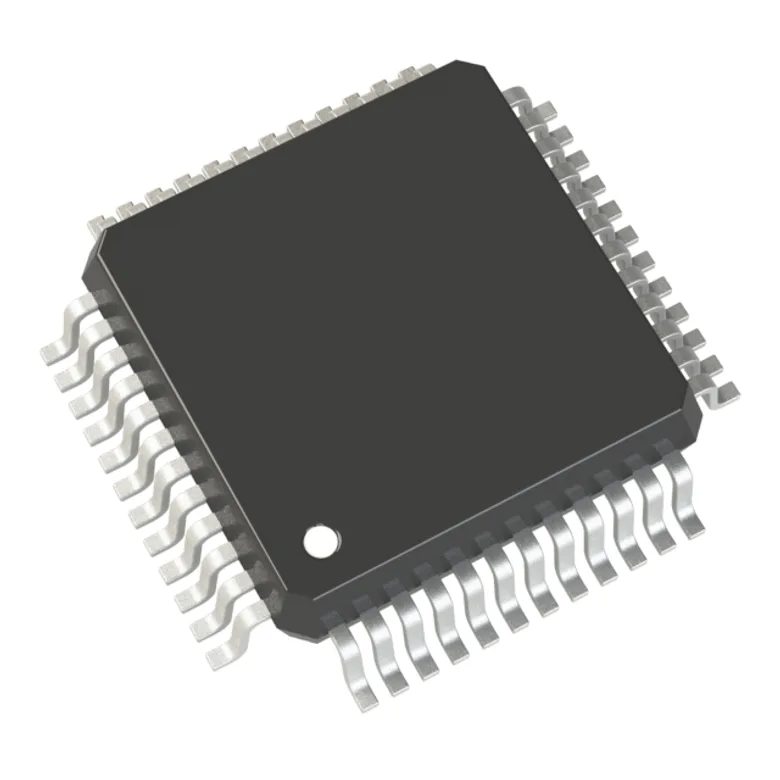

Image shown is representative only. Exact specifications should be obtained from the product datasheet.
Renesas Electronics Corporation UPD78F1826GAA2-GAM-G
Manufacturer
Manufacturer Product Number
UPD78F1826GAA2-GAM-G
Description
IC MCU 16BIT 64KB FLASH 48LFQFP
Manufacturer Standard Lead Time Contact us
Detailed Description
78K/0R 78K0R/Fx3 Microcontroller IC 16-Bit 20MHz 64KB (64K x 8) FLASH 48-LFQFP (7x7)
Product Attributes
Type
Description
Manufacturer
Renesas Electronics Corporation
Product Status
Obsolete
Number of I/O
32
Operating Temperature
-40°C ~ 125°C (TA)
DigiKey Programmable
Not Verified
Oscillator Type
Internal
Program Memory Type
FLASH
EEPROM Size
-
Core Processor
78K/0R
Data Converters
A/D 11x10b
Core Size
16-Bit
Mounting Type
Surface Mount
Supplier Device Package
48-LFQFP (7x7)
Speed
20MHz
Program Memory Size
64KB (64K x 8)
RAM Size
4K x 8
Package / Case
48-LQFP
Voltage - Supply (Vcc/Vdd)
2.7V ~ 5.5V
Connectivity
CSI, I2C, UART/USART
Peripherals
DMA, LVD, PWM, WDT
Documents & Media
Resource Type
Link
Manuals
Product Change Notices
Environmental & Export Classifications
Attribute
Description
Product Status
Obsolete
Additional Resources
Attribute
Description
Part Number Alias
UPD78F1826GAA2-GAM-G
9930019
Availability
Out of Stock
Updated
5/16/2026
