Image shown is representative only. Exact specifications should be obtained from the product datasheet.

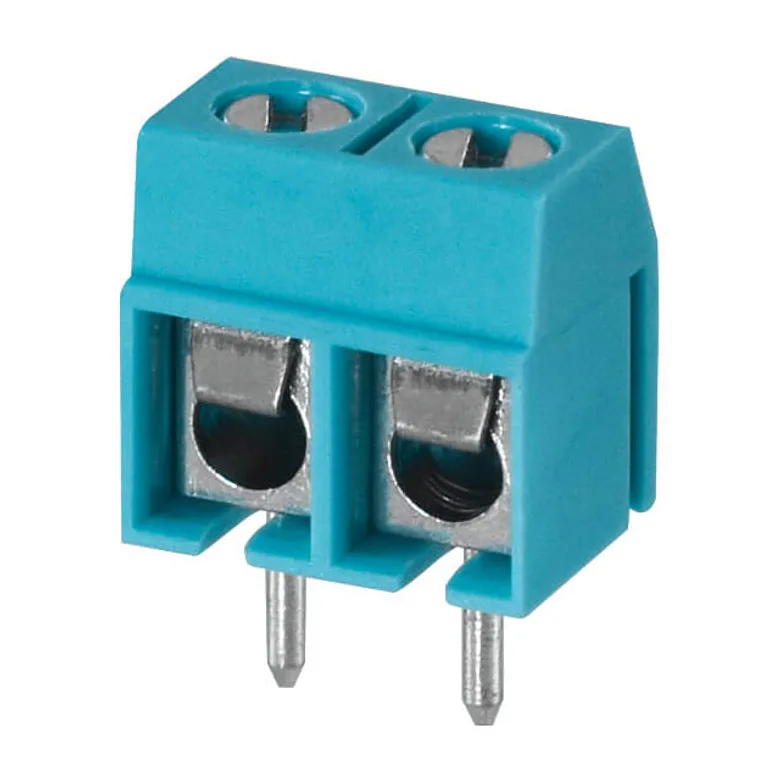

Same Sky (Formerly CUI Devices) TB002-500-02BE
Manufacturer
Manufacturer Product Number
TB002-500-02BE
Description
TERMINAL BLOCK, SCREW TYPE, 5.00
Manufacturer Standard Lead Time Contact us
Detailed Description
TERMINAL BLOCK, SCREW TYPE, 5.00
Datasheet View datasheet
EDA/CAD Models
Product Attributes
Type
Description
Manufacturer
Same Sky (Formerly CUI Devices)
Voltage
300 V
Operating Temperature
-40°C ~ 105°C
Color
Blue
Features
Interlocking (Side)
Mounting Type
Through Hole
Wire Gauge
12-22 AWG
Mating Orientation
Horizontal with Board
Pitch
0.197" (5.00mm)
Housing Material
Polybutylene Terephthalate (PBT)
Contact Material - Plating
Copper Alloy - Tin Plated
Clamp Material - Plating
Steel, Stainless
Screw Material - Plating
Steel - Zinc Plated
Torque - Screw
0.4 Nm (3.5 Lb-In)
Screw Thread
M2.5
Wire Termination
Screw - Leaf Spring, Wire Guard
Positions Per Level
2
Current
15 A
Number of Levels
1
Documents & Media
Resource Type
Link
Datasheets
Design Resources
Interactive Media
Environmental Information
Featured Products
Additional Resources
Attribute
Description
Part Number Alias
TB002-500-02BE
10064069
102-6145-ND
Availability
In Stock
Updated
5/16/2026
In-Stock: 37,429
Packaging Quantity Unit Price Ext Price
1 9.000 ₫ 9.000 ₫
9.000 ₫
All prices are shown in the selected currency
Bag · Digikey
Quantity Unit Price Ext Price
1
9.000 ₫
9.000 ₫
10
7.000 ₫
70.000 ₫
25
6.000 ₫
150.000 ₫
50
6.000 ₫
300.000 ₫
100
5.000 ₫
500.000 ₫
250
5.000 ₫
1.250.000 ₫
500
4.000 ₫
2.000.000 ₫
3,000
4.000 ₫
12.000.000 ₫
6,000
3.000 ₫
18.000.000 ₫
MOQ 1 · Order multiple 1
