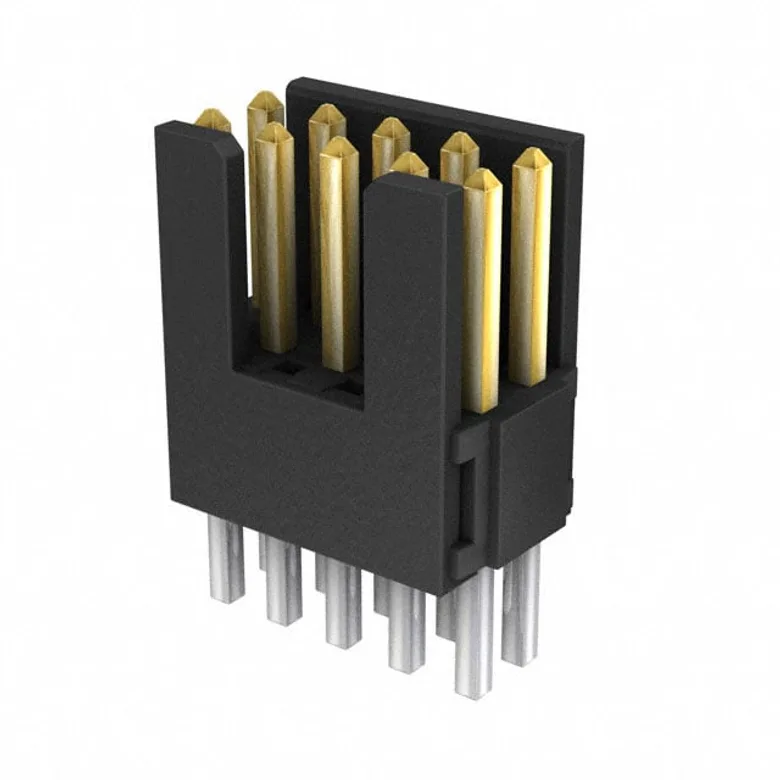

Image shown is representative only. Exact specifications should be obtained from the product datasheet.
Samtec Inc. FTSH-105-01-L-D-K
Manufacturer
Manufacturer Product Number
FTSH-105-01-L-D-K
Description
CONN HEADER VERT 10POS 1.27MM
Manufacturer Standard Lead Time Contact us
Detailed Description
CONN HEADER VERT 10POS 1.27MM
Datasheet View datasheet
EDA/CAD Models
Product Attributes
Type
Description
Manufacturer
Samtec Inc.
Operating Temperature
-55°C ~ 125°C
Connector Type
Header, Cuttable
Applications
-
Features
Keying Shroud
Contact Type
Male Pin
Fastening Type
Push-Pull
Number of Positions Loaded
All
Termination
Solder
Voltage Rating
-
Current Rating (Amps)
3.4A per Contact
Mounting Type
Through Hole
Ingress Protection
-
Mated Stacking Heights
-
Number of Positions
10
Number of Rows
2
Material Flammability Rating
UL94 V-0
Style
Board to Board or Cable
Insulation Color
Black
Pitch - Mating
0.050" (1.27mm)
Contact Finish - Mating
Gold
Contact Finish Thickness - Mating
10.0µin (0.25µm)
Contact Finish - Post
Tin
Contact Finish Thickness - Post
-
Contact Material
Phosphor Bronze
Contact Shape
Square
Contact Length - Post
0.090" (2.29mm)
Insulation Height
0.099" (2.51mm)
Shrouding
Unshrouded
Overall Contact Length
0.309" (7.86mm)
Insulation Material
Liquid Crystal Polymer (LCP)
Row Spacing - Mating
0.050" (1.27mm)
Contact Length - Mating
0.120" (3.05mm)
Documents & Media
Resource Type
Link
Datasheets
CAD Models
Drawings
Training Modules
Reliability Documents
Additional Resources
Attribute
Description
Part Number Alias
FTSH-105-01-L-D-K
2649979
SAM8798-ND
Availability
In Stock
Updated
5/16/2026
In-Stock: 12,388
Packaging Quantity Unit Price Ext Price
1 61.000 ₫ 61.000 ₫
61.000 ₫
All prices are shown in the selected currency
Tube · Digikey
Quantity Unit Price Ext Price
1
61.000 ₫
61.000 ₫
100
48.000 ₫
4.800.000 ₫
250
44.000 ₫
11.000.000 ₫
500
39.000 ₫
19.500.000 ₫
1,000
34.000 ₫
34.000.000 ₫
2,500
31.000 ₫
77.500.000 ₫
5,000
29.000 ₫
145.000.000 ₫
10,000
25.000 ₫
250.000.000 ₫
MOQ 1 · Order multiple 1
