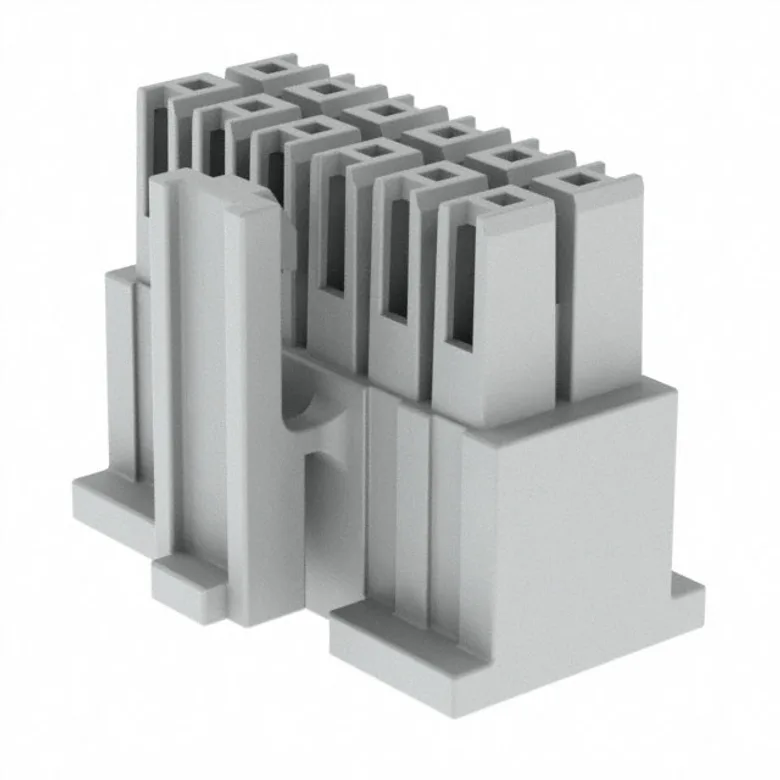

Image shown is representative only. Exact specifications should be obtained from the product datasheet.
Samtec Inc. IPD1-06-D
Manufacturer
Manufacturer Product Number
IPD1-06-D
Description
CONN RCPT HSG 12POS 2.54MM
Manufacturer Standard Lead Time Contact us
Detailed Description
CONN RCPT HSG 12POS 2.54MM
Datasheet View datasheet
EDA/CAD Models
Product Attributes
Type
Description
Manufacturer
Samtec Inc.
Operating Temperature
-
Connector Type
Receptacle
Contact Termination
Crimp
Color
White
Features
-
Contact Type
Female Socket
Fastening Type
Latch Lock
Row Spacing
0.100" (2.54mm)
Mounting Type
Free Hanging (In-Line)
Number of Positions
12
Pitch
0.100" (2.54mm)
Note
Contacts Sold Separately
Insulation Material
Polyamide (PA66), Nylon 6/6
Number of Rows
2
Documents & Media
Resource Type
Link
CAD Models
Related Documents
Product Change Notices
Featured Products
Additional Resources
Attribute
Description
Part Number Alias
IPD1-06-D
4360803
SAM10564-ND
Availability
In Stock
Updated
5/16/2026
In-Stock: 174
Packaging Quantity Unit Price Ext Price
1 17.000Â â‚« 17.000Â â‚«
17.000Â â‚«
All prices are shown in the selected currency
Bulk · Digikey
Quantity Unit Price Ext Price
1
17.000Â â‚«
17.000Â â‚«
50
15.000Â â‚«
750.000Â â‚«
100
13.000Â â‚«
1.300.000Â â‚«
500
11.000Â â‚«
5.500.000Â â‚«
1,000
10.000Â â‚«
10.000.000Â â‚«
MOQ 1 · Order multiple 1
