Image shown is representative only. Exact specifications should be obtained from the product datasheet.

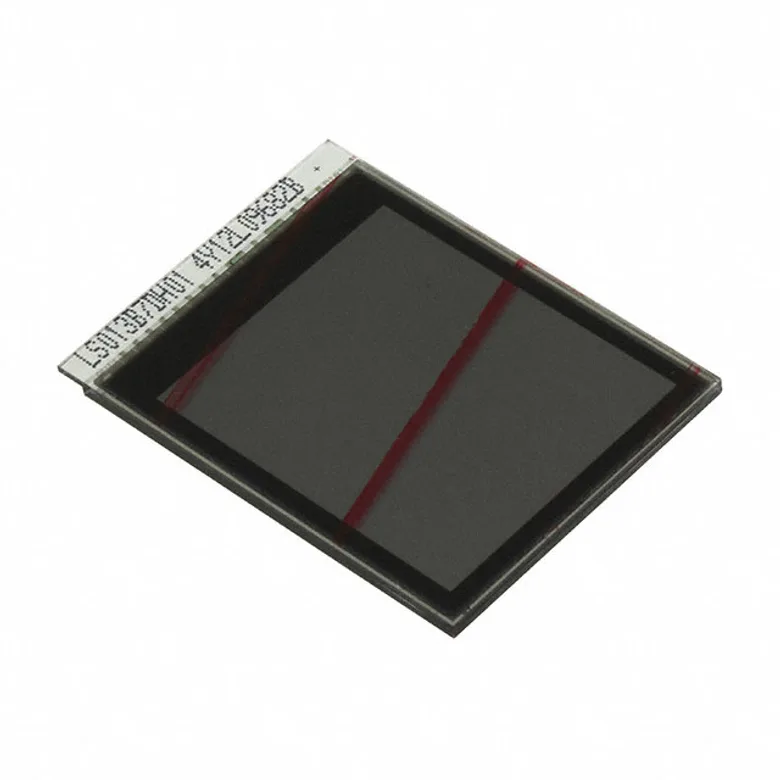

Sharp Microelectronics LS013B7DH01
Manufacturer
Manufacturer Product Number
LS013B7DH01
Description
GRAPHIC DISPLAY TFT BLACK 1.26"
Manufacturer Standard Lead Time Contact us
Detailed Description
Graphic LCD Display Module Transflective Black TFT - Monochrome Serial 1.26" (32.00mm) 144 x 168
Datasheet View datasheet
Product Attributes
Type
Description
Manufacturer
Sharp Microelectronics
Product Status
Obsolete
Viewing Area
20.88mm W x 24.36mm H
Display Type
TFT - Monochrome
Dot Size
-
Dot Pitch
0.15mm W x 0.15mm H
Dot Pixels
144 x 168
Diagonal Screen Size
1.26" (32.00mm)
Interface
Serial
Background Color
White
Display Mode
Transflective
Graphics Color
Black
Touchscreen
-
Backlight
Without Backlight
Documents & Media
Resource Type
Link
Datasheets
Environmental & Export Classifications
Attribute
Description
Product Status
Obsolete
Additional Resources
Attribute
Description
Part Number Alias
LS013B7DH01
5054065
Availability
Out of Stock
Updated
5/16/2026
In-Stock: 0
