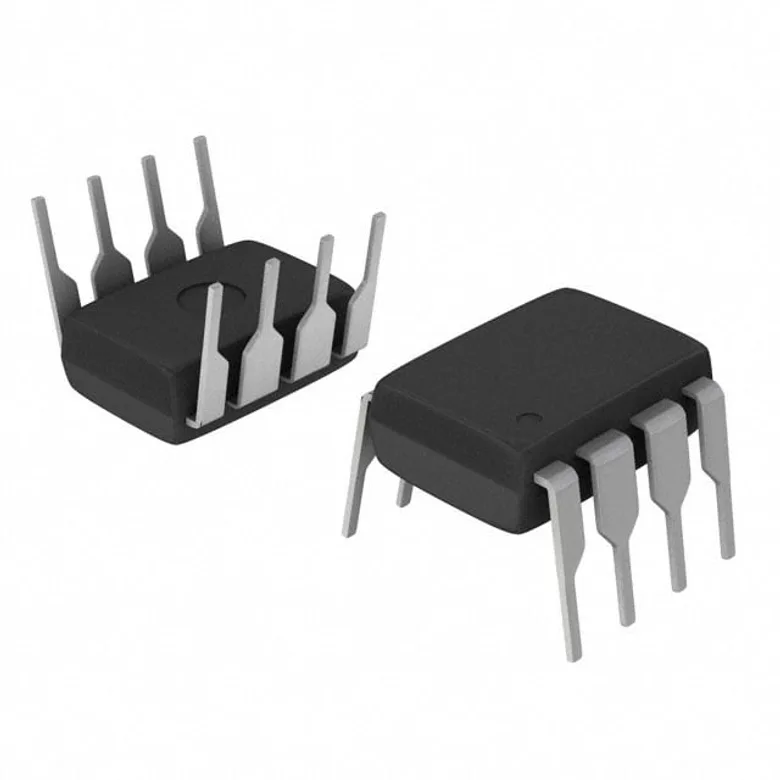

Image shown is representative only. Exact specifications should be obtained from the product datasheet.
Sharp Microelectronics PC924L0YSZ0F
Manufacturer
Manufacturer Product Number
PC924L0YSZ0F
Description
OPTOISO 5KV 1CH GATE DVR 8DIP
Manufacturer Standard Lead Time Contact us
Detailed Description
600mA Gate Driver Optical Coupling 5000Vrms 1 Channel 8-DIP
Datasheet View datasheet
Product Attributes
Type
Description
Manufacturer
Sharp Microelectronics
Product Status
Obsolete
Voltage - Output Supply
15V ~ 30V
Operating Temperature
-40°C ~ 100°C
Voltage - Forward (Vf) (Typ)
1.2V
Current - Peak Output
600mA
Technology
Optical Coupling
Current - Output High, Low
-
Voltage - Isolation
5000Vrms
Approval Agency
UR, VDE
Mounting Type
Through Hole
Supplier Device Package
8-DIP
Package / Case
8-DIP (0.300", 7.62mm)
Rise / Fall Time (Typ)
200ns, 200ns
Common Mode Transient Immunity (Min)
15kV/µs
Propagation Delay tpLH / tpHL (Max)
2µs, 2µs
Pulse Width Distortion (Max)
-
Number of Channels
1
Current - DC Forward (If) (Max)
25 mA
Documents & Media
Resource Type
Link
Datasheets
Environmental & Export Classifications
Attribute
Description
Product Status
Obsolete
Additional Resources
Attribute
Description
Part Number Alias
PC924L0YSZ0F
857112
PC924L0YSZ0F-ND
Availability
Out of Stock
Updated
5/16/2026
In-Stock: 0
Packaging Quantity Unit Price Ext Price
1 24.000 ₫ 24.000 ₫
24.000 ₫
All prices are shown in the selected currency
Tube · Digikey
Quantity Unit Price Ext Price
1,000
24.000 ₫
24.000.000 ₫
MOQ 1,000 · Order multiple 1,000
Substitutes
LTV-3150
OPTOISO 5KV 1CH GATE DVR 8DIP
24.000 ₫ Lite-On Inc.
