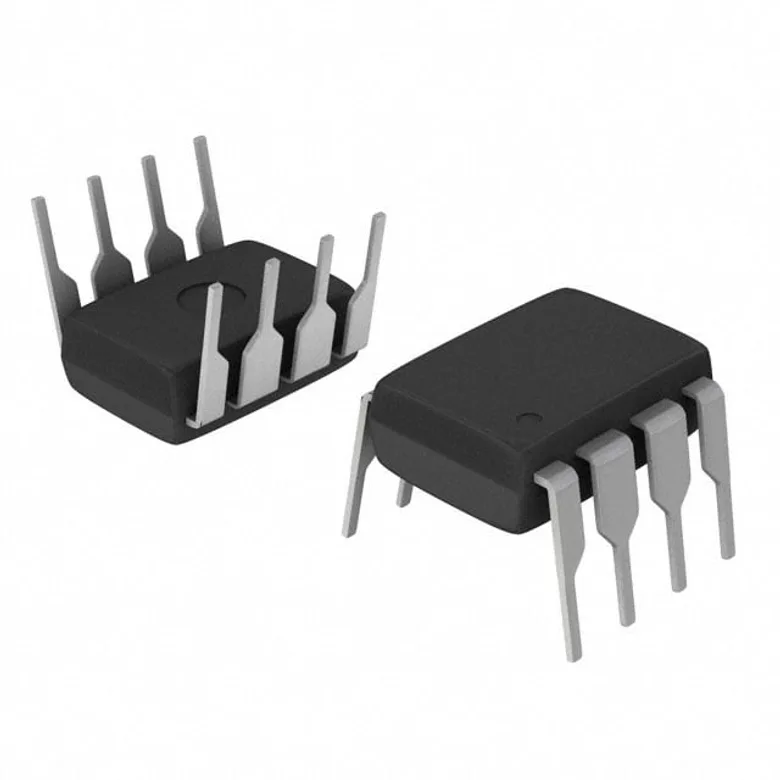

Image shown is representative only. Exact specifications should be obtained from the product datasheet.
Sharp Microelectronics PC942
Manufacturer
Manufacturer Product Number
PC942
Description
OPTOISO 5KV PWR TRANS DVR 8DIP
Manufacturer Standard Lead Time Contact us
Detailed Description
Optoisolator Power Transistor Driver 5000Vrms 1 Channel 8-DIP
Datasheet View datasheet
Product Attributes
Type
Description
Manufacturer
Sharp Microelectronics
Product Status
Obsolete
Voltage - Forward (Vf) (Typ)
1.1 V
Operating Temperature
-20°C ~ 80°C
Voltage - Supply
5.4V ~ 13V
Input Type
DC
Current - Output / Channel
500mA, 600mA
Voltage - Isolation
5000Vrms
Approval Agency
UR
Mounting Type
Through Hole
Supplier Device Package
8-DIP
Package / Case
8-DIP (0.300", 7.62mm)
Rise / Fall Time (Typ)
200ns, 100ns
Common Mode Transient Immunity (Min)
10kV/µs
Propagation Delay tpLH / tpHL (Max)
5µs, 5µs
Type
Power Transistor Driver
Number of Channels
1
Current - DC Forward (If) (Max)
25 mA
Documents & Media
Resource Type
Link
Datasheets
Environmental & Export Classifications
Attribute
Description
Product Status
Obsolete
Additional Resources
Attribute
Description
Part Number Alias
PC942
458051
425-1545-5-ND
Availability
Out of Stock
Updated
5/16/2026
In-Stock: 0
Packaging Quantity Unit Price Ext Price
1 16.000 ₫ 16.000 ₫
16.000 ₫
All prices are shown in the selected currency
Tube · Digikey
Quantity Unit Price Ext Price
1,000
16.000 ₫
16.000.000 ₫
MOQ 1,000 · Order multiple 1,000
