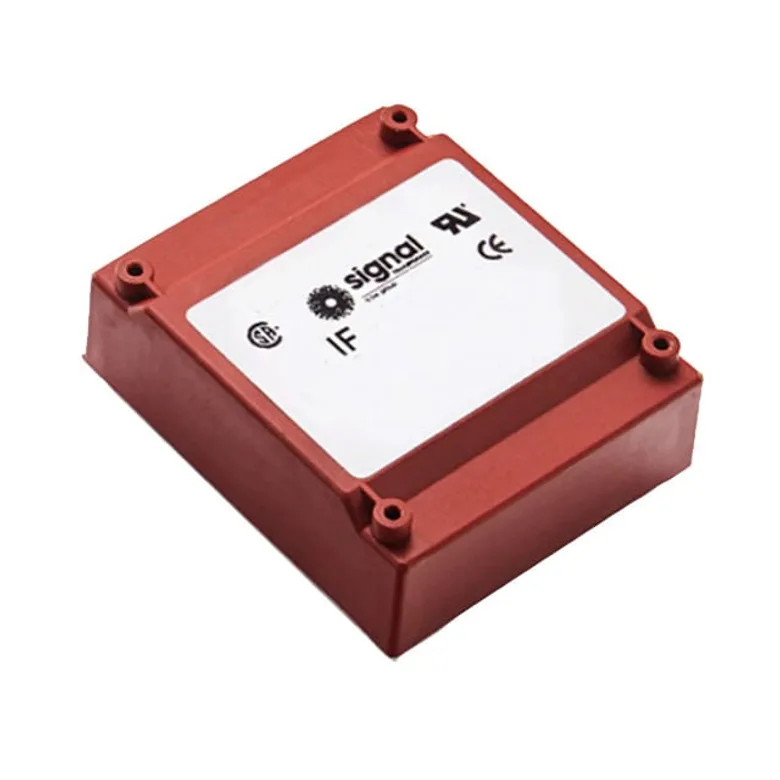

Image shown is representative only. Exact specifications should be obtained from the product datasheet.
Signal Transformer IF-18-24
Manufacturer
Manufacturer Product Number
IF-18-24
Description
PWR XFMR SEMI-TORO 18VA TH
Manufacturer Standard Lead Time 2 Days
Detailed Description
Semi-Toroidal 18VA Power Transformer 115V, 230V Primary Parallel 12V, Series 24V Secondary Parallel 1.5A, Series 750mA Through Hole
Datasheet View datasheet
EDA/CAD Models
Product Attributes
Type
Description
Manufacturer
Signal Transformer
Current - Output (Max)
Parallel 1.5A, Series 750mA
Termination Style
PC Pin
Size / Dimension
67.60mm L x 57.00mm W
Primary Winding(s)
Dual
Secondary Winding(s)
Dual
Power - Max
18VA
Voltage - Isolation
4000Vrms
Mounting Type
Through Hole
Voltage - Primary
115V, 230V
Height - Seated (Max)
27.60mm
Voltage - Secondary (Full Load)
Parallel 12V, Series 24V
Center Tap
No
Type
Semi-Toroidal
Weight
0.882 lb (400.07 g)
Documents & Media
Resource Type
Link
Datasheets
EDA Models
Videos
Environmental Information
Product Change Notices
Featured Products
Additional Resources
Attribute
Description
Part Number Alias
IF-18-24
1118126
2266-IF-18-24-ND
595-1932-ND
Availability
In Stock
Updated
5/16/2026
In-Stock: 25
Packaging Quantity Unit Price Ext Price
1 777.000Â â‚« 777.000Â â‚«
777.000Â â‚«
All prices are shown in the selected currency
Retail Package · Digikey
Quantity Unit Price Ext Price
3
777.000Â â‚«
2.331.000Â â‚«
12
763.000Â â‚«
9.156.000Â â‚«
24
748.000Â â‚«
17.952.000Â â‚«
MOQ 3 · Order multiple 3
Bulk · Digikey
Quantity Unit Price Ext Price
40
829.000Â â‚«
33.160.000Â â‚«
MOQ 40 · Order multiple 40
