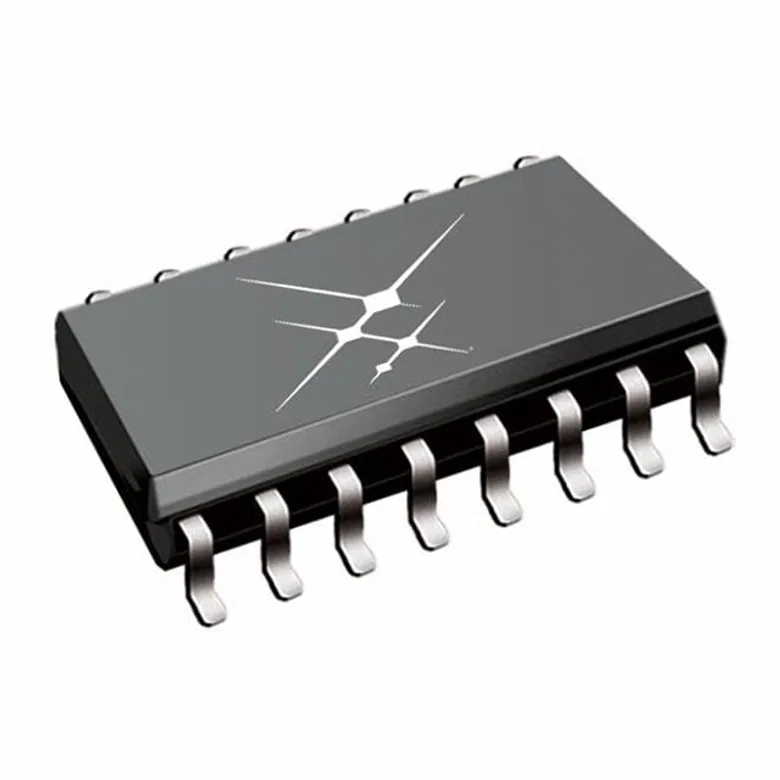

Image shown is representative only. Exact specifications should be obtained from the product datasheet.
Skyworks Solutions Inc. SI823H3BB-IS1
Manufacturer
Manufacturer Product Number
SI823H3BB-IS1
Description
DGTL ISO 2.5KV 2CH GT DVR 16SOIC
Manufacturer Standard Lead Time Contact us
Detailed Description
6A Gate Driver Capacitive Coupling 2500Vrms 2 Channel 16-SOIC
Datasheet View datasheet
Product Attributes
Type
Description
Manufacturer
Skyworks Solutions Inc.
Voltage - Output Supply
7V ~ 8.2V
Operating Temperature
-40°C ~ 125°C (TA)
Voltage - Forward (Vf) (Typ)
-
Current - Peak Output
6A
Technology
Capacitive Coupling
Current - Output High, Low
4A, 4A
Voltage - Isolation
2500Vrms
Approval Agency
CQC, CSA, UL, VDE
Mounting Type
Surface Mount
Supplier Device Package
16-SOIC
Package / Case
16-SOIC (0.154", 3.90mm Width)
Rise / Fall Time (Typ)
12ns, 12ns (Max)
Common Mode Transient Immunity (Min)
125kV/µs
Propagation Delay tpLH / tpHL (Max)
116ns, 116ns
Pulse Width Distortion (Max)
5ns
Number of Channels
2
Documents & Media
Resource Type
Link
Datasheets
Product Change Notices
Featured Products
Additional Resources
Attribute
Description
Part Number Alias
SI823H3BB-IS1
10134441
336-5911-ND
Availability
Out of Stock
Updated
5/16/2026
In-Stock: 0
Packaging Quantity Unit Price Ext Price
1 109.000 ₫ 109.000 ₫
109.000 ₫
All prices are shown in the selected currency
Tube · Digikey
Quantity Unit Price Ext Price
48
109.000 ₫
5.232.000 ₫
MOQ 48 · Order multiple 48
Alternate Packaging
SI823H3BB-IS1R
DGTL ISO 2.5KV 2CH GT DVR 16SOIC
92.000 ₫ Skyworks Solutions Inc.
