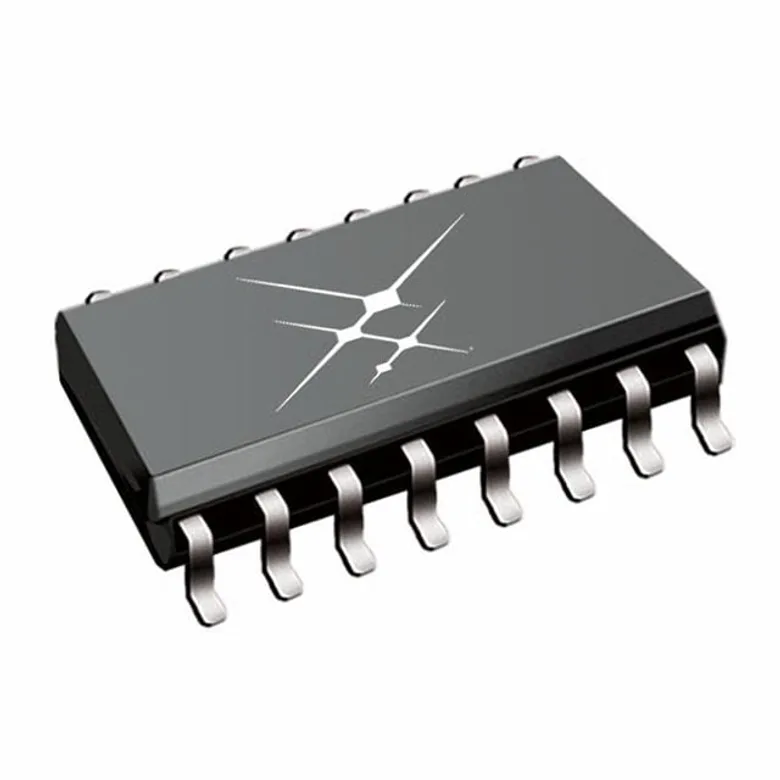

Image shown is representative only. Exact specifications should be obtained from the product datasheet.
Skyworks Solutions Inc. SI8275DBD-IS1R
Manufacturer
Manufacturer Product Number
SI8275DBD-IS1R
Description
DGTL ISO 2.5KV 2CH GT DVR 16SOIC
Manufacturer Standard Lead Time Contact us
Detailed Description
4A Gate Driver RF Coupling 2500Vrms 2 Channel 16-SOIC
Datasheet View datasheet
Product Attributes
Type
Description
Manufacturer
Skyworks Solutions Inc.
Voltage - Output Supply
4.2V ~ 30V
Operating Temperature
-40°C ~ 125°C
Voltage - Forward (Vf) (Typ)
-
Current - Peak Output
4A
Technology
RF Coupling
Current - Output High, Low
1.8A, 4A
Voltage - Isolation
2500Vrms
Approval Agency
CQC, CSA, UL, VDE
Mounting Type
Surface Mount
Supplier Device Package
16-SOIC
Package / Case
16-SOIC (0.154", 3.90mm Width)
Rise / Fall Time (Typ)
10.5ns, 13.3ns
Common Mode Transient Immunity (Min)
200kV/µs
Propagation Delay tpLH / tpHL (Max)
75ns, 75ns
Pulse Width Distortion (Max)
8ns
Number of Channels
2
Documents & Media
Additional Resources
Attribute
Description
Part Number Alias
SI8275DBD-IS1R
10136493
SI8275DBD-IS1R-ND
Availability
Out of Stock
Updated
5/16/2026
In-Stock: 0
Packaging Quantity Unit Price Ext Price
1 70.000 ₫ 70.000 ₫
70.000 ₫
All prices are shown in the selected currency
Tape & Reel (TR) · Digikey
Quantity Unit Price Ext Price
2,500
70.000 ₫
175.000.000 ₫
MOQ 2,500 · Order multiple 2,500
Alternate Packaging
SI8275DBD-IS1
DGTL ISO 2.5KV 2CH GT DVR 16SOIC
130.000 ₫ Skyworks Solutions Inc.
