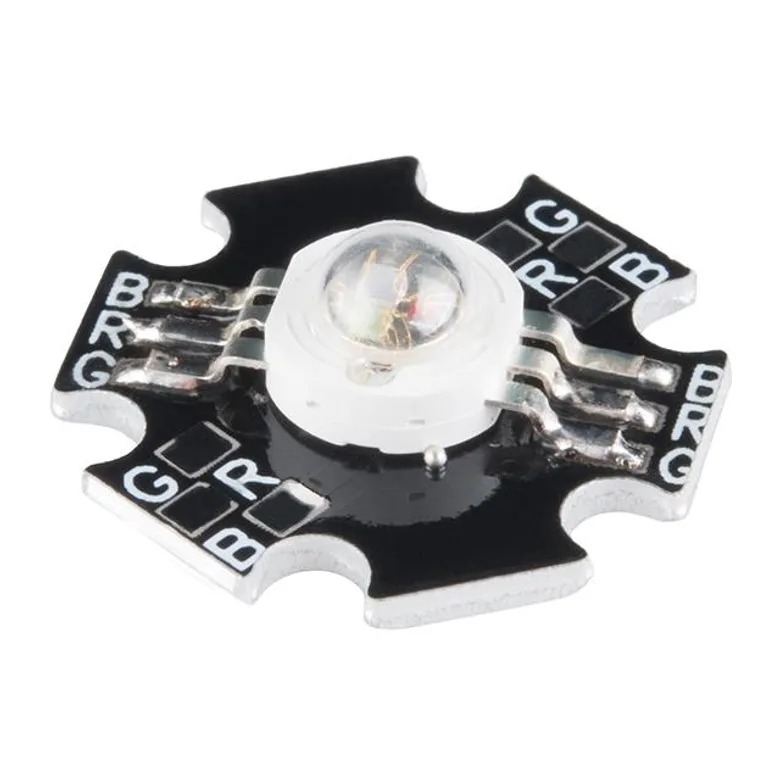

Image shown is representative only. Exact specifications should be obtained from the product datasheet.
SparkFun Electronics 08718
Manufacturer
Manufacturer Product Number
08718
Description
LED MOD RGB STARBOARD TRPL OUT
Manufacturer Standard Lead Time Contact us
Detailed Description
LED Lighting COBs Engines Modules LED Module - Red, Green, Blue (RGB) Starboard
Datasheet View datasheet
Product Attributes
Type
Description
Manufacturer
SparkFun Electronics
Voltage - Forward (Vf) (Typ)
2.4V Red, 3.5V Green, 3.4V Blue
Height
1.70mm
Color
Red, Green, Blue (RGB)
Wavelength
625nm Red, 522nm Green, 463nm Blue
Size / Dimension
20.00mm Dia
Features
-
Current - Test
350mA Red, 350mA Green, 350mA Blue
Viewing Angle
120°
Lens Type
Domed
Current - Max
370mA Red, 370mA Green, 370mA Blue
Lumens/Watt @ Current - Test
42 lm/W Red, 47 lm/W Green, 11 lm/W Blue
CCT (K)
-
CRI (Color Rendering Index)
-
Light Emitting Surface (LES)
-
Temperature - Test
25°C
Type
LED Module
Luminous Flux @ Current/Temperature
35lm Red, 57lm Green, 13lm Blue
Configuration
Starboard
Documents & Media
Resource Type
Link
Datasheets
Additional Resources
Attribute
Description
Part Number Alias
08718
9770727
1568-08718-ND
Availability
Out of Stock
Updated
5/16/2026
In-Stock: 0
Packaging Quantity Unit Price Ext Price
1 467.000 ₫ 467.000 ₫
467.000 ₫
All prices are shown in the selected currency
Bulk · Digikey
Quantity Unit Price Ext Price
1
467.000 ₫
467.000 ₫
MOQ 1 · Order multiple 1
