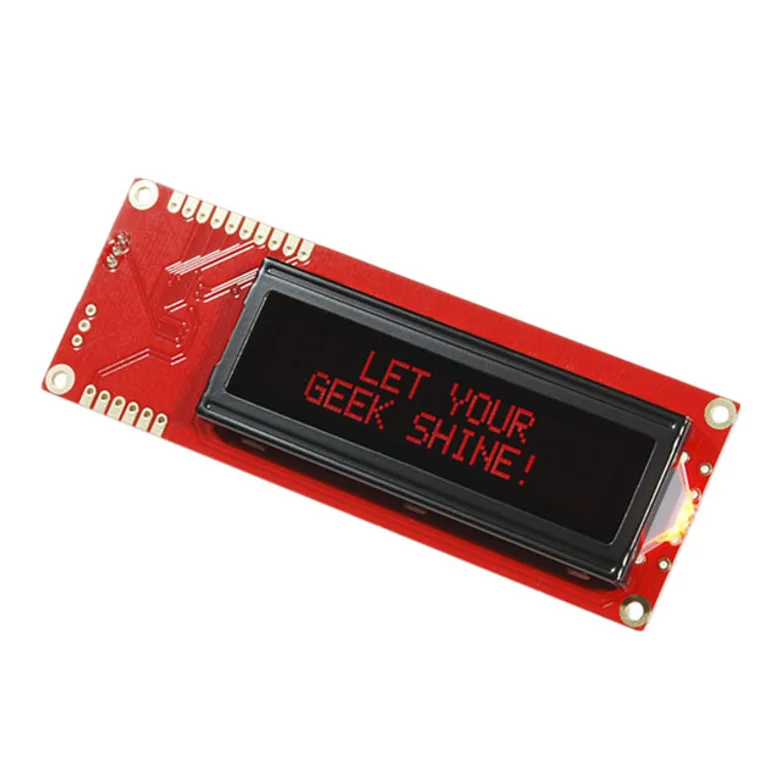

Image shown is representative only. Exact specifications should be obtained from the product datasheet.
SparkFun Electronics 09394
Manufacturer
Manufacturer Product Number
09394
Description
LCD MOD 32DIG 16X2 TRANSFLECTIVE
Manufacturer Standard Lead Time Contact us
Detailed Description
Character Display Module Transflective 5 x 8 Dots STN - Super-Twisted Nematic LED Parallel/Serial 103.00mm x 36.00mm x 7.05mm
Datasheet View datasheet
EDA/CAD Models
Product Attributes
Type
Description
Manufacturer
SparkFun Electronics
Product Status
Obsolete
Number of Characters
32.0
Operating Temperature
0°C ~ 50°C
Voltage - Supply
5V
Viewing Area
71.45mm L x 27.03mm W
Display Type
STN - Super-Twisted Nematic
Character Size
5.23mm H x 3.00mm W
Display Format
16 x 2
Character Format
5 x 8 Dots
Dot Size
0.56mm W x 0.61mm H
Outline L x W x H
103.00mm x 36.00mm x 7.05mm
Interface
Parallel/Serial
Text Color
Red
Background Color
Black
Display Mode
Transflective
Backlight
LED
Documents & Media
Resource Type
Link
Datasheets
Design Resources
Environmental & Export Classifications
Attribute
Description
Product Status
Obsolete
Additional Resources
Attribute
Description
Part Number Alias
09394
5764486
1568-09394-ND
Availability
Out of Stock
Updated
5/16/2026
In-Stock: 0
Packaging Quantity Unit Price Ext Price
1 648.000 ₫ 648.000 ₫
648.000 ₫
All prices are shown in the selected currency
Bulk · Digikey
Quantity Unit Price Ext Price
1
648.000 ₫
648.000 ₫
MOQ 1 · Order multiple 1
Substitutes
09395
LCD MOD 32DIG 16X2 TRANSFLECTIVE
778.000 ₫ SparkFun Electronics
