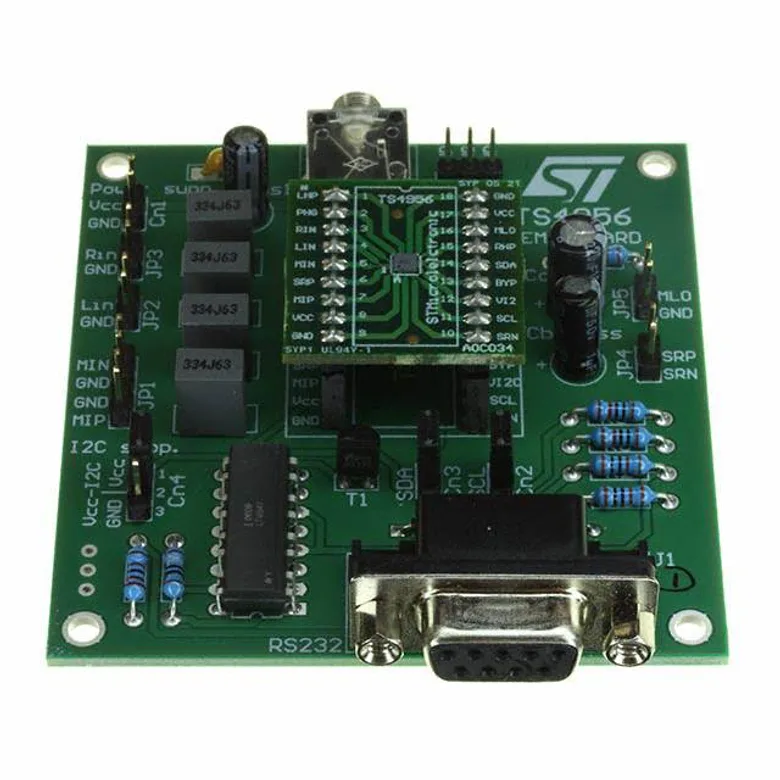

Image shown is representative only. Exact specifications should be obtained from the product datasheet.
STMicroelectronics DEMOTS4956J
Manufacturer
Manufacturer Product Number
DEMOTS4956J
Description
EVAL BOARD FOR TS4956
Manufacturer Standard Lead Time Contact us
Detailed Description
TS4956 - 1-Channel (Mono) with Mono and Stereo Headphones Output Class AB Audio Amplifier Evaluation Board
Datasheet View datasheet
EDA/CAD Models
Product Attributes
Type
Description
Manufacturer
STMicroelectronics
Product Status
Obsolete
Contents
Board(s)
Voltage - Supply
2.7V ~ 5.5V
Output Type
1-Channel (Mono) with Mono and Stereo Headphones
Max Output Power x Channels @ Load
1W x 1 @ 8Ohm; 43mW x 2 @ 32Ohm
Utilized IC / Part
TS4956
Note
-
Amplifier Type
Class AB
Documents & Media
Resource Type
Link
Datasheets
Reference Designs
Environmental & Export Classifications
Attribute
Description
Product Status
Obsolete
Additional Resources
Attribute
Description
Part Number Alias
DEMOTS4956J
1820113
497-6381-ND
Availability
Out of Stock
Updated
5/16/2026
In-Stock: 0
Packaging Quantity Unit Price Ext Price
1 3.896.000Â â‚« 3.896.000Â â‚«
3.896.000Â â‚«
All prices are shown in the selected currency
Bulk · Digikey
Quantity Unit Price Ext Price
1
3.896.000Â â‚«
3.896.000Â â‚«
MOQ 1 · Order multiple 1
