STMicroelectronics DIP1524-01D3

Image shown is representative only. Exact specifications should be obtained from the product datasheet.

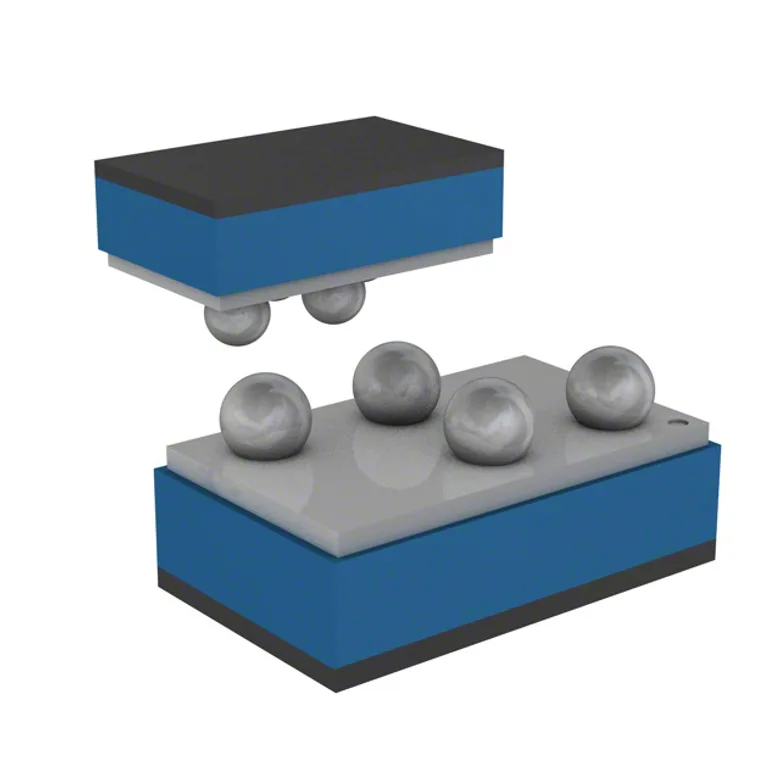

STMicroelectronics DIP1524-01D3

Manufacturer
STMicroelectronics
Manufacturer Product Number
DIP1524-01D3
Description

RF DIPLX 1589.655MHZ/2.55GHZ BGA

Manufacturer Standard Lead Time Contact us
Detailed Description

RF Diplexer 1573.42MHz ~ 1605.89MHz / 2.4GHz ~ 2.7GHz 4-UFBGA, FCBGA

Product Attributes

Type
Description
Categories
RF and Wireless
RF Multiplexers
Manufacturer
STMicroelectronics
Product Status
Obsolete
Frequency Bands (Low / High)
1573.42MHz ~ 1605.89MHz / 2.4GHz ~ 2.7GHz
Low Band Attenuation (min / max dB)
20.00dB / -
High Band Attenuation (min / max dB)
18.00dB / -
Return Loss (Low Band / High Band)
10.0dB / 20.0dB
Mounting Type
Surface Mount
Package / Case
4-UFBGA, FCBGA
Type
Diplexer
View similar

Documents & Media

Resource Type
Link
Datasheets
BRHEALTH Datasheet DIP1524-01D3
EDA Models
DIP1524-01D3 by Ultra Librarian DIP1524-01D3 by SnapEDA
Application Notes
AN2348 Application Note
Related Documents
DIP1524-01D3 View All Specifications
Training Modules
Dynamic NFC / RFID Tag Internet of Things and the ST Portfolio of Wireless Modules WiFi Modules Overview

Environmental & Export Classifications

Attribute
Description
Product Status
Obsolete

Additional Resources

Attribute
Description
Part Number Alias
DIP1524-01D3 3043807
Availability
Out of Stock
Updated
5/16/2026
