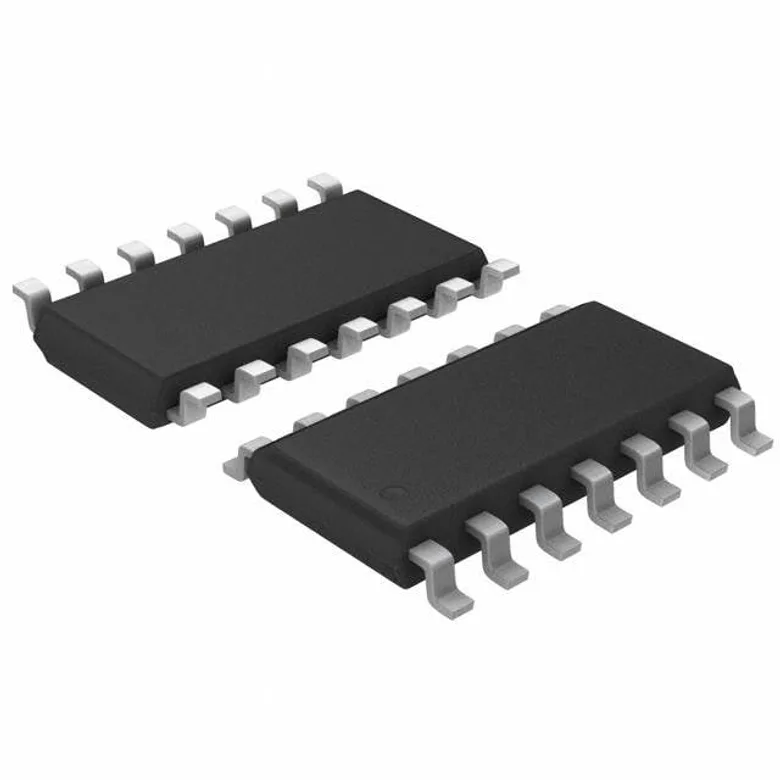

Image shown is representative only. Exact specifications should be obtained from the product datasheet.
STMicroelectronics HCF4013YM013TR
Manufacturer
Manufacturer Product Number
HCF4013YM013TR
Description
IC FF D-TYPE DOUBLE 1-BIT 14-SO
Manufacturer Standard Lead Time Contact us
Detailed Description
IC FF D-TYPE DOUBLE 1-BIT 14-SO
Datasheet View datasheet
EDA/CAD Models
Product Attributes
Type
Description
Manufacturer
STMicroelectronics
Number of Bits per Element
1
Operating Temperature
-40°C ~ 125°C (TA)
Qualification
AEC-Q100
Voltage - Supply
3V ~ 20V
Output Type
Complementary
Current - Quiescent (Iq)
20 µA
Current - Output High, Low
6.8mA, 6.8mA
Trigger Type
Positive Edge
Mounting Type
Surface Mount
Clock Frequency
24 MHz
Input Capacitance
5 pF
Supplier Device Package
14-SO
Max Propagation Delay @ V, Max CL
90ns @ 15V, 50pF
Number of Elements
2
Package / Case
14-SOIC (0.154", 3.90mm Width)
Type
D-Type
Grade
Automotive
Function
Set(Preset) and Reset
Documents & Media
Resource Type
Link
Datasheets
EDA Models
Related Documents
Additional Resources
Attribute
Description
Part Number Alias
HCF4013YM013TR
4725923
497-14370-2-ND
Availability
Out of Stock
Updated
5/16/2026
In-Stock: 0
Packaging Quantity Unit Price Ext Price
1 7.000 ₫ 7.000 ₫
7.000 ₫
All prices are shown in the selected currency
Tape & Reel (TR) · Digikey
Quantity Unit Price Ext Price
2,500
7.000 ₫
17.500.000 ₫
5,000
7.000 ₫
35.000.000 ₫
7,500
7.000 ₫
52.500.000 ₫
12,500
7.000 ₫
87.500.000 ₫
17,500
7.000 ₫
122.500.000 ₫
25,000
7.000 ₫
175.000.000 ₫
MOQ 2,500 · Order multiple 2,500
