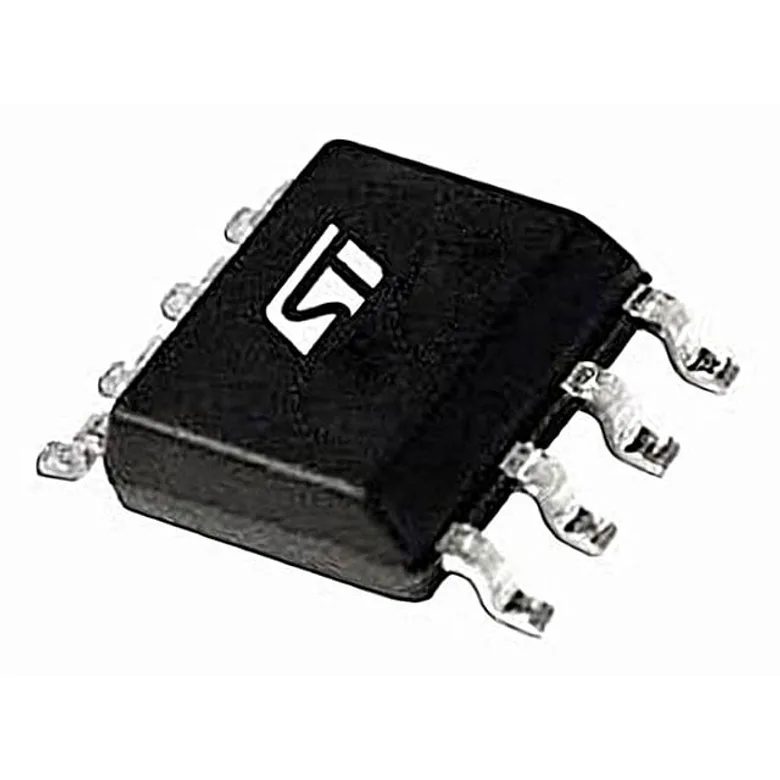

Image shown is representative only. Exact specifications should be obtained from the product datasheet.
STMicroelectronics L6388ED
Manufacturer
Manufacturer Product Number
L6388ED
Description
IC GATE DRVR HALF-BRIDGE 8SO
Manufacturer Standard Lead Time Contact us
Detailed Description
IC GATE DRVR HALF-BRIDGE 8SO
Datasheet View datasheet
EDA/CAD Models
Product Attributes
Type
Description
Manufacturer
STMicroelectronics
Operating Temperature
-40°C ~ 150°C (TJ)
DigiKey Programmable
Not Verified
Voltage - Supply
17V (Max)
Input Type
Non-Inverting
Mounting Type
Surface Mount
Supplier Device Package
8-SOIC
High Side Voltage - Max (Bootstrap)
600 V
Package / Case
8-SOIC (0.154", 3.90mm Width)
Rise / Fall Time (Typ)
70ns, 40ns
Channel Type
Independent
Driven Configuration
Half-Bridge
Number of Drivers
2
Gate Type
IGBT, MOSFET (N-Channel)
Logic Voltage - VIL, VIH
1.1V, 1.8V
Current - Peak Output (Source, Sink)
400mA, 650mA
Documents & Media
Resource Type
Link
Datasheets
EDA Models
Related Documents
Product Change Notices
Additional Resources
Attribute
Description
Part Number Alias
L6388ED
1665598
497-14773-5-ND
Availability
In Stock
Updated
5/16/2026
In-Stock: 2,357
Packaging Quantity Unit Price Ext Price
1 63.000 ₫ 63.000 ₫
63.000 ₫
All prices are shown in the selected currency
Tube · Digikey
Quantity Unit Price Ext Price
1
63.000 ₫
63.000 ₫
10
47.000 ₫
470.000 ₫
25
43.000 ₫
1.075.000 ₫
100
38.000 ₫
3.800.000 ₫
300
36.000 ₫
10.800.000 ₫
500
35.000 ₫
17.500.000 ₫
1,000
34.000 ₫
34.000.000 ₫
2,500
33.000 ₫
82.500.000 ₫
5,000
32.000 ₫
160.000.000 ₫
MOQ 1 · Order multiple 1
