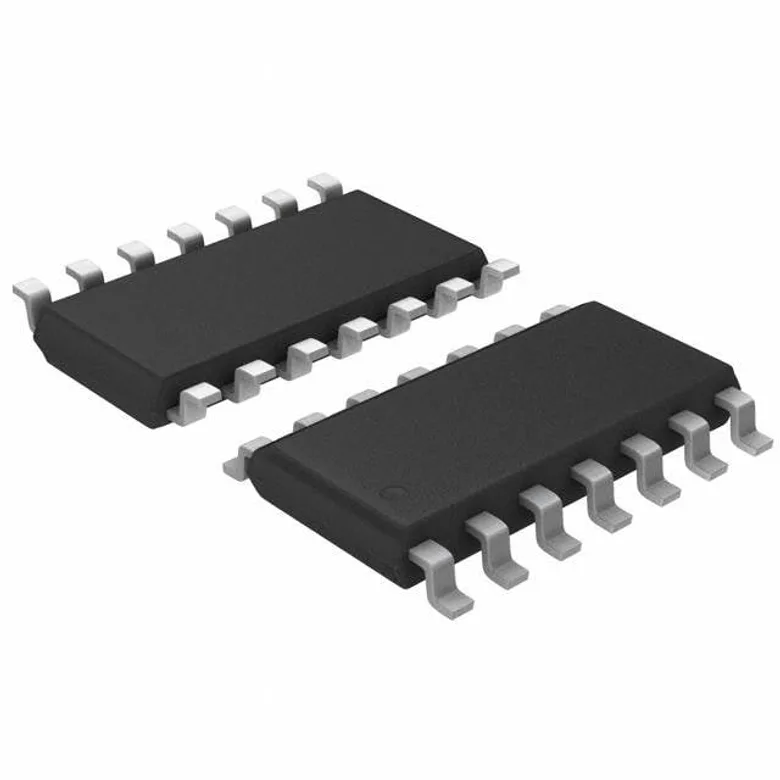

Image shown is representative only. Exact specifications should be obtained from the product datasheet.
STMicroelectronics LM239AD
Manufacturer
Manufacturer Product Number
LM239AD
Description
IC COMPARATOR 4 GEN PUR 14SO
Manufacturer Standard Lead Time Contact us
Detailed Description
IC COMPARATOR 4 GEN PUR 14SO
Datasheet View datasheet
EDA/CAD Models
Product Attributes
Type
Description
Manufacturer
STMicroelectronics
Product Status
Obsolete
Operating Temperature
-40°C ~ 105°C
Output Type
CMOS, DTL, ECL, MOS, Open-Collector, TTL
Voltage - Supply, Single/Dual (±)
2V ~ 32V, ±1V ~ 16V
Mounting Type
Surface Mount
Supplier Device Package
14-SO
Propagation Delay (Max)
-
Current - Quiescent (Max)
2mA
Voltage - Input Offset (Max)
2mV @ 30V
Current - Input Bias (Max)
0.1µA @ 5V
Current - Output (Typ)
16mA @ 5V
CMRR, PSRR (Typ)
-
Hysteresis
-
Number of Elements
4
Package / Case
14-SOIC (0.154", 3.90mm Width)
Type
Standard (General Purpose)
Documents & Media
Environmental & Export Classifications
Attribute
Description
Product Status
Obsolete
Additional Resources
Attribute
Description
Part Number Alias
LM239AD
1038654
Availability
Out of Stock
Updated
5/16/2026
In-Stock: 0
Packaging Quantity Unit Price Ext Price
1 0Â â‚« 0Â â‚«
0Â â‚«
All prices are shown in the selected currency
