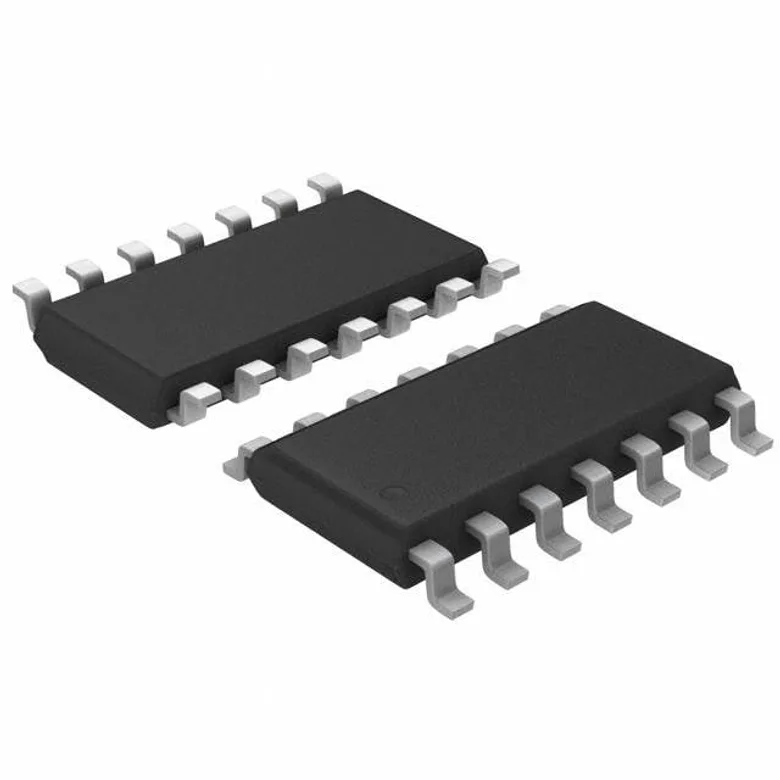

Image shown is representative only. Exact specifications should be obtained from the product datasheet.
STMicroelectronics LM339AD
Manufacturer
Manufacturer Product Number
LM339AD
Description
IC COMPARATOR 4 GEN PUR 14SO
Manufacturer Standard Lead Time Contact us
Detailed Description
IC COMPARATOR 4 GEN PUR 14SO
Datasheet View datasheet
EDA/CAD Models
Product Attributes
Type
Description
Manufacturer
STMicroelectronics
Operating Temperature
0°C ~ 70°C
Output Type
CMOS, DTL, ECL, MOS, Open-Collector, TTL
Voltage - Supply, Single/Dual (±)
2V ~ 32V, ±1V ~ 16V
Mounting Type
Surface Mount
Supplier Device Package
14-SO
Propagation Delay (Max)
-
Current - Quiescent (Max)
2.5mA
Voltage - Input Offset (Max)
2mV @ 30V
Current - Input Bias (Max)
0.1µA @ 5V
Current - Output (Typ)
16mA @ 5V
CMRR, PSRR (Typ)
-
Hysteresis
-
Number of Elements
4
Package / Case
14-SOIC (0.154", 3.90mm Width)
Type
Standard (General Purpose)
Documents & Media
Resource Type
Link
Datasheets
EDA Models
Related Documents
Featured Products
Additional Resources
Attribute
Description
Part Number Alias
LM339AD
1038714
497-18636-ND
Availability
In Stock
Updated
5/16/2026
In-Stock: 567
Packaging Quantity Unit Price Ext Price
1 84.000 ₫ 84.000 ₫
84.000 ₫
All prices are shown in the selected currency
Tube · Digikey
Quantity Unit Price Ext Price
1
84.000 ₫
84.000 ₫
10
63.000 ₫
630.000 ₫
50
55.000 ₫
2.750.000 ₫
100
52.000 ₫
5.200.000 ₫
250
49.000 ₫
12.250.000 ₫
500
48.000 ₫
24.000.000 ₫
1,000
46.000 ₫
46.000.000 ₫
2,500
45.000 ₫
112.500.000 ₫
5,000
44.000 ₫
220.000.000 ₫
MOQ 1 · Order multiple 1
